SN105125DBVR

SN105125DBVR Overview

Product belongs to the SN105125 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 3 V ~ 5.25 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.2V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 0.5 W Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 1.2 V Maximum Input Voltage: 5.25 V Output current: 150 mA The product's + 3 V is 5.1 V. Load regulation is 3 %. The voltage regulation accuracy of this product is 1 %. Input bias current of 150 uA The 1 V at 150 mA. This product's 10 mV is 0.01 %/V.

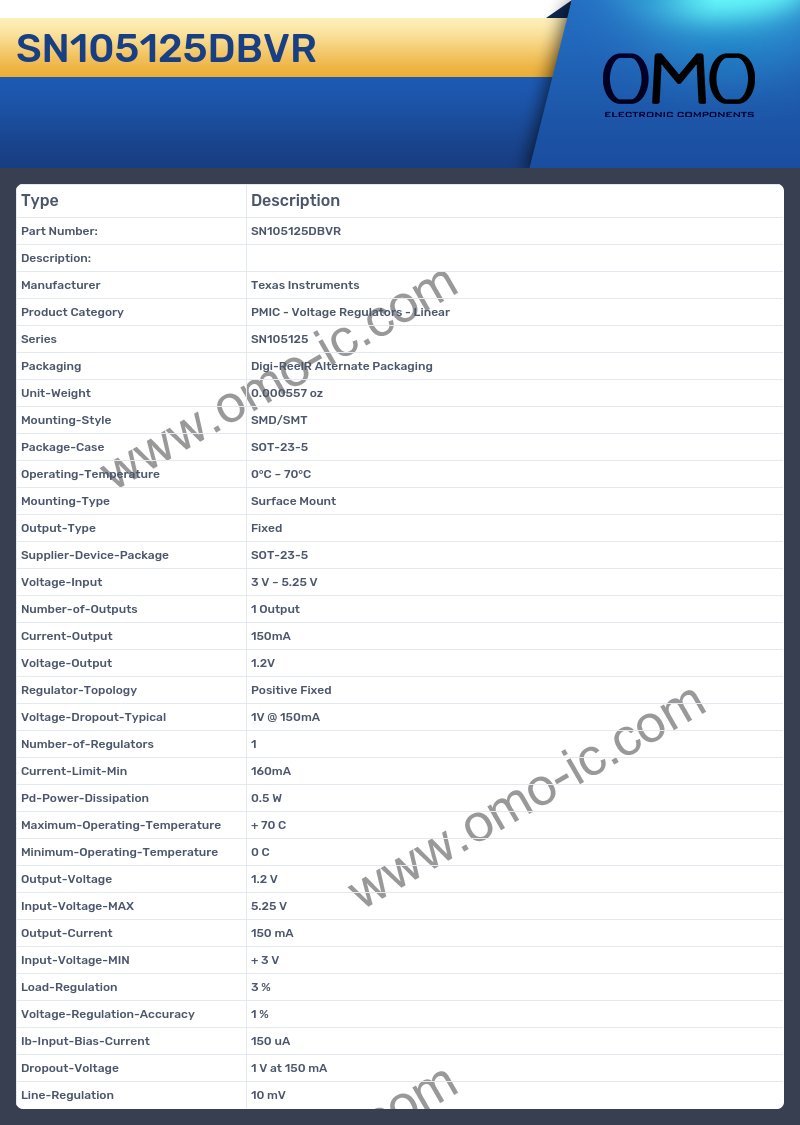

SN105125DBVR Image

SN105125DBVR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series SN105125
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input 3 V ~ 5.25 V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 1.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 1V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min 160mA
• Pd-Power-Dissipation 0.5 W
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 1.2 V
• Input-Voltage-MAX 5.25 V
• Output-Current 150 mA
• Input-Voltage-MIN + 3 V
• Load-Regulation 3 %
• Voltage-Regulation-Accuracy 1 %
• Ib-Input-Bias-Current 150 uA
• Dropout-Voltage 1 V at 150 mA
• Line-Regulation 10 mV
