SMBJ13A-TR

SMBJ13A-TR Overview

Product belongs to the SMBJ, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.003880 oz SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 175 C operating temperature range for diverse applications The Height of the product is 2.45 mm. 4.6 mm length of the product The 3.95 mm is at most 7.6 mm. DO-214AA, SMB Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: SMB (DO-214AA) - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 13V. The Voltage-Breakdown-Min is 14.4V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 600 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Breakdown-Voltage: 14.4 V to 15.9 V Clamping-Voltage: 27.2 V 29 A Peak Surge Current 13 V working voltage Polarity: Unidirectional

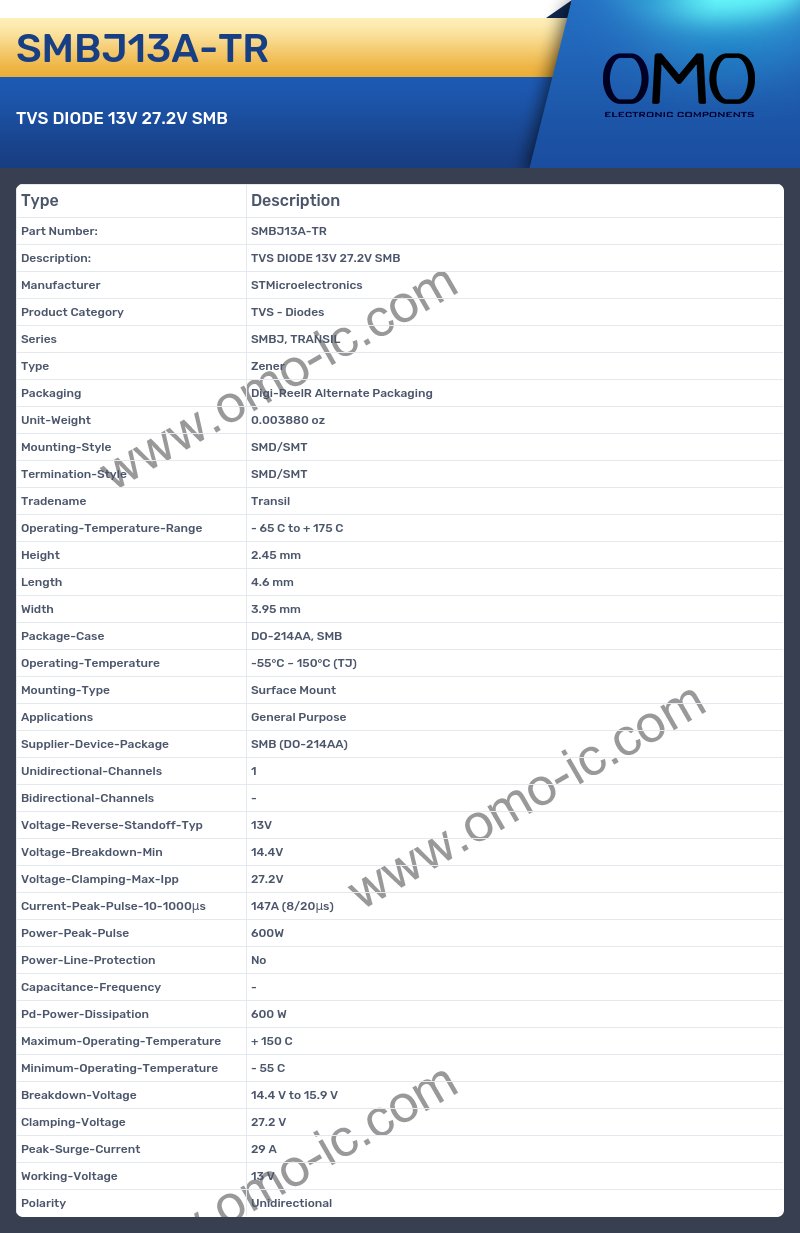

SMBJ13A-TR Image

SMBJ13A-TR Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series SMBJ, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.003880 oz
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 175 C
• Height 2.45 mm
• Length 4.6 mm
• Width 3.95 mm
• Package-Case DO-214AA, SMB
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package SMB (DO-214AA)
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 13V
• Voltage-Breakdown-Min 14.4V
• Voltage-Clamping-Max-Ipp 27.2V
• Current-Peak-Pulse-10-1000μs 147A (8/20μs)
• Power-Peak-Pulse 600W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 600 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 14.4 V to 15.9 V
• Clamping-Voltage 27.2 V
• Peak-Surge-Current 29 A
• Working-Voltage 13 V
• Polarity Unidirectional
