SM6T16V5AY

SM6T16V5AY Overview

Product belongs to the Automotive, AEC-Q101, SM6TY, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.003880 oz SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 2.45 mm. 5.6 mm length of the product The 3.95 mm is at most 7.6 mm. DO-214AA, SMB Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile Automotive applications for maximum usability Supplier device package: SMB (DO-214AA) - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 14.1V. The Voltage-Breakdown-Min is 15.7V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 600 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Breakdown-Voltage: 16.5 V Clamping-Voltage: 29 V 136 A Peak Surge Current 14.1 V working voltage Polarity: Unidirectional

SM6T16V5AY Image

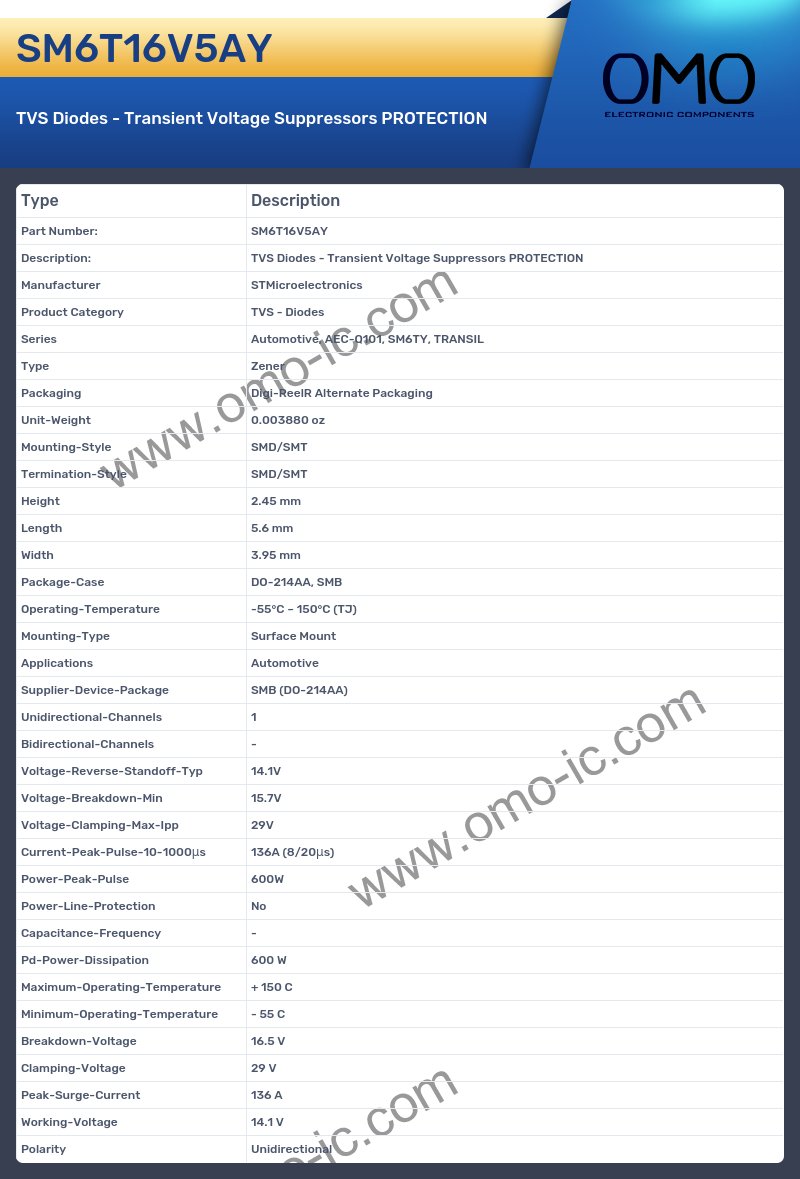

SM6T16V5AY Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, SM6TY, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.003880 oz
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Height 2.45 mm
• Length 5.6 mm
• Width 3.95 mm
• Package-Case DO-214AA, SMB
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive
• Supplier-Device-Package SMB (DO-214AA)
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 14.1V
• Voltage-Breakdown-Min 15.7V
• Voltage-Clamping-Max-Ipp 29V
• Current-Peak-Pulse-10-1000μs 136A (8/20μs)
• Power-Peak-Pulse 600W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 600 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 16.5 V
• Clamping-Voltage 29 V
• Peak-Surge-Current 136 A
• Working-Voltage 14.1 V
• Polarity Unidirectional
