SI8900D-A01-GS

SI8900D-A01-GS Overview

Product belongs to the Si8900D series. This product is categorized as Isolated Analog to Digital Converters Type: Isolated Monitoring ADC Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: Isolated Number of channels: 3 Channel Supplier device package: 16-SOIC This product's -. Data-Interface: UART 10 bits The Voltage-Supply-Analog is 2.7 V ~ 3.6 V. The Voltage Supply Digital for this product is 2.7 V ~ 3.6 V. Configuration MUX-PGA-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. UART 2-Wire interface type The 2 LSB of this product is 0.2%. Number-of-Converters: 1 Converter Integral Nonlinearity: 1 LSB Reference voltage is 0 V to 3.6 V . Differential nonlinearity: 1 LSB

SI8900D-A01-GS Image

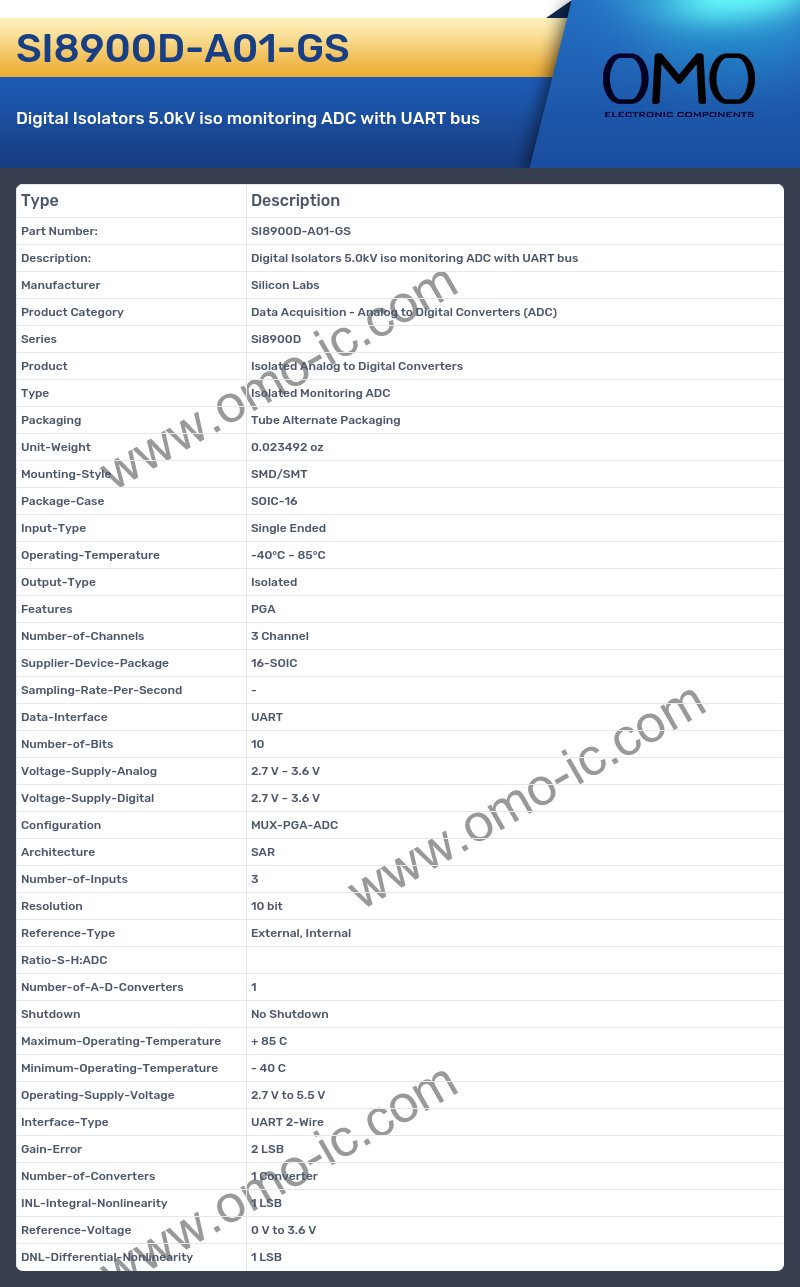

SI8900D-A01-GS Specifications

• Manufacturer Silicon Labs
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series Si8900D
• Product Isolated Analog to Digital Converters
• Type Isolated Monitoring ADC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Output-Type Isolated
• Features PGA
• Number-of-Channels 3 Channel
• Supplier-Device-Package 16-SOIC
• Sampling-Rate-Per-Second -
• Data-Interface UART
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 3.6 V
• Voltage-Supply-Digital 2.7 V ~ 3.6 V
• Configuration MUX-PGA-ADC
• Architecture SAR
• Number-of-Inputs 3
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Interface-Type UART 2-Wire
• Gain-Error 2 LSB
• Number-of-Converters 1 Converter
• INL-Integral-Nonlinearity 1 LSB
• Reference-Voltage 0 V to 3.6 V
• DNL-Differential-Nonlinearity 1 LSB
