SI88620ED-IS Overview

Product belongs to the Automotive, AEC-Q100 series. Type: General Purpose Tube is the packaging method for this product Weight of 0.009408 oz SMD/SMT Mounting-Style SO-20 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 20-SOIC This product's Unidirectional This product is designed with 5000Vrms voltage isolation for maximum safety and reliability. Power-off control: Shutdown This product is designed with Yes isolated power for maximum safety and reliability. The product has 2000/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 40kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 12.6ns, 17.5ns (Typ) The minimum pulse width distortion is 4.8ns (Typ). Power-off control: 2.27 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 7.3 mA 16.1 mA is 92 nA. Isolation voltage of 5 kVrms Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V 17.5 ns is 23 microseconds. This product features 2 Channel Forward-Channels for simple connectivity. The product has 0 Channel for reverse communication.

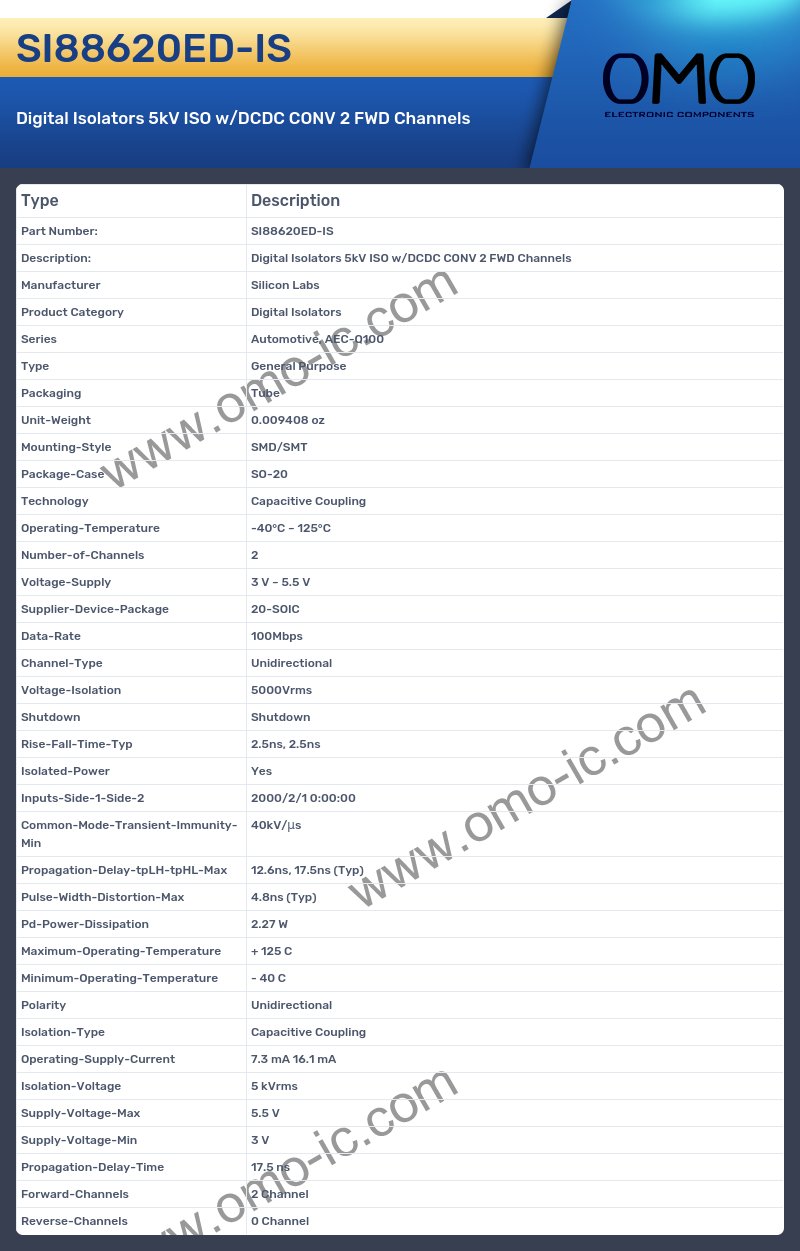

SI88620ED-IS Image

SI88620ED-IS Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Automotive, AEC-Q100
• Type General Purpose
• Packaging Tube
• Unit-Weight 0.009408 oz
• Mounting-Style SMD/SMT
• Package-Case SO-20
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 2
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 20-SOIC
• Data-Rate 100Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 5000Vrms
• Shutdown Shutdown
• Rise-Fall-Time-Typ 2.5ns, 2.5ns
• Isolated-Power Yes
• Inputs-Side-1-Side-2 2000/2/1 0:00:00
• Common-Mode-Transient-Immunity-Min 40kV/μs
• Propagation-Delay-tpLH-tpHL-Max 12.6ns, 17.5ns (Typ)
• Pulse-Width-Distortion-Max 4.8ns (Typ)
• Pd-Power-Dissipation 2.27 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 7.3 mA 16.1 mA
• Isolation-Voltage 5 kVrms
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Time 17.5 ns
• Forward-Channels 2 Channel
• Reverse-Channels 0 Channel
