SI8642BA-B-IU

SI8642BA-B-IU Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.001764 oz SMD/SMT Mounting-Style QSOP-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 2.5 V ~ 5.5 V Supplier device package: 16-QSOP This product's Unidirectional This product is designed with 1000Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/2 0:00:00 inputs from Side 1 to Side 2. Minimum 35kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 13ns, 13ns The minimum pulse width distortion is 4.5ns. Power-off control: 275 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. +/- 11 mA is 92 nA. Isolation voltage of 1 kVrms Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V 10 ns is 23 microseconds.

SI8642BA-B-IU Image

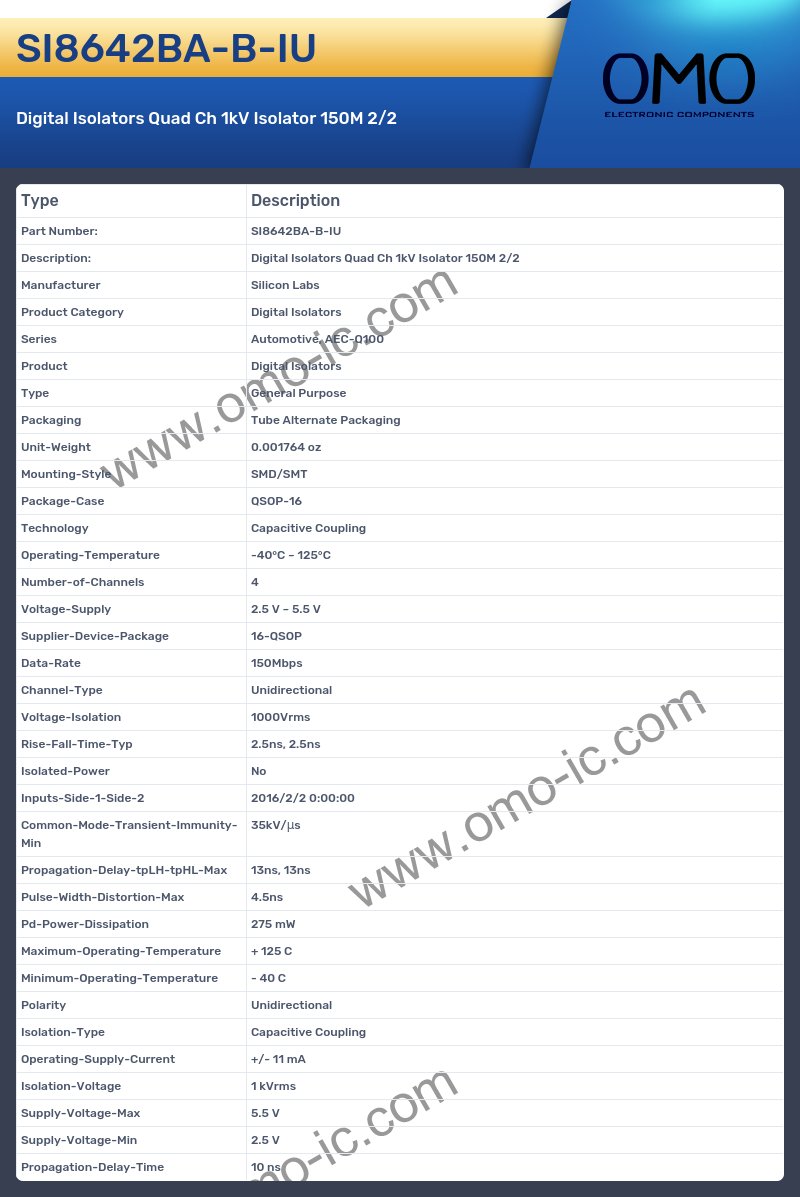

SI8642BA-B-IU Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Automotive, AEC-Q100
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.001764 oz
• Mounting-Style SMD/SMT
• Package-Case QSOP-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 4
• Voltage-Supply 2.5 V ~ 5.5 V
• Supplier-Device-Package 16-QSOP
• Data-Rate 150Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 1000Vrms
• Rise-Fall-Time-Typ 2.5ns, 2.5ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/2 0:00:00
• Common-Mode-Transient-Immunity-Min 35kV/μs
• Propagation-Delay-tpLH-tpHL-Max 13ns, 13ns
• Pulse-Width-Distortion-Max 4.5ns
• Pd-Power-Dissipation 275 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current +/- 11 mA
• Isolation-Voltage 1 kVrms
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.5 V
• Propagation-Delay-Time 10 ns
