SI8605AB-B-IS1 Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Digital Isolators Type: I2C Tube Alternate Packaging is the packaging method for this product Weight of 0.005069 oz SMD/SMT Mounting-Style SOIC-Narrow-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 16-SOIC This product's Bidirectional, Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. Power-off control: Shutdown This product is designed with No isolated power for maximum safety and reliability. The product has 2016/3/3 0:00:00 inputs from Side 1 to Side 2. Minimum 35kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: - The minimum pulse width distortion is -. Power-off control: 275 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Bidirectional Unidirectional Capacitive Coupling is the isolation type specified for this product. 7.2 mA is 92 nA. Isolation voltage of 2.5 kVrms I2C protocol is supported. Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V 44 ns is 23 microseconds.

SI8605AB-B-IS1 Image

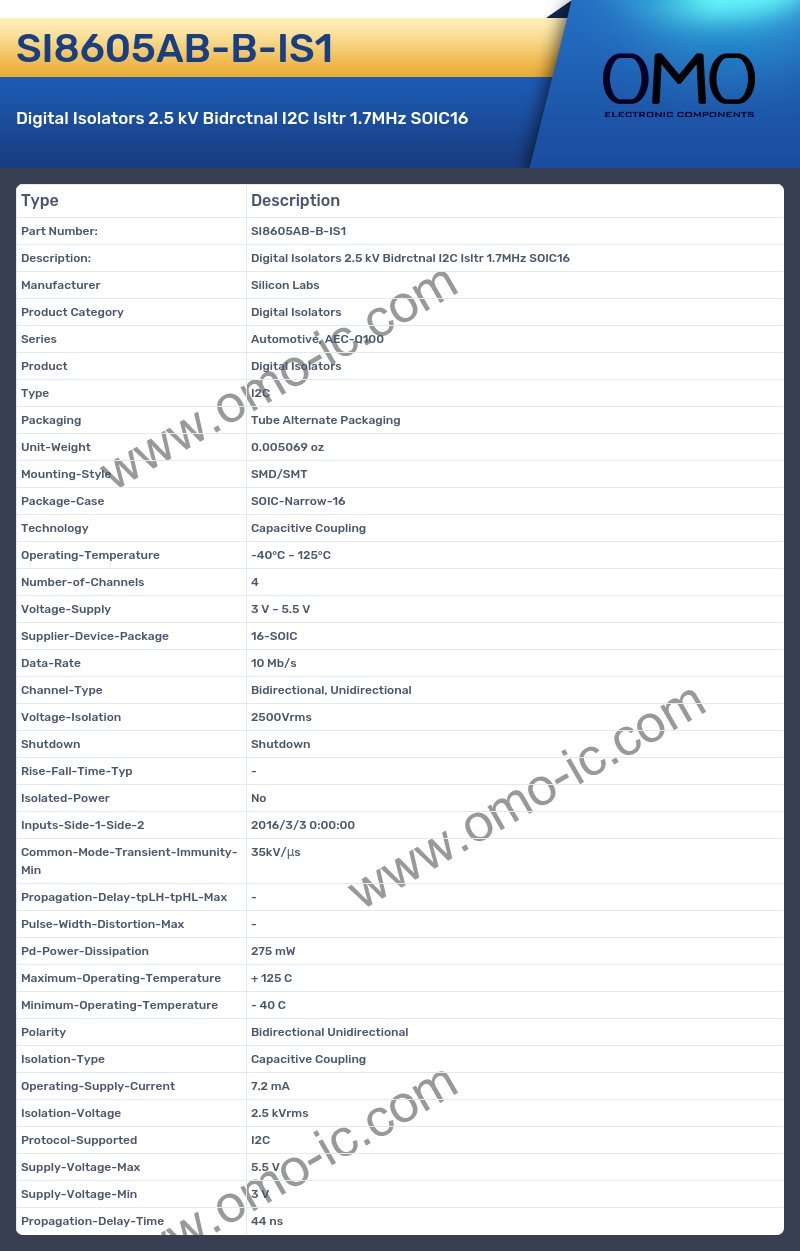

SI8605AB-B-IS1 Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Automotive, AEC-Q100
• Product Digital Isolators
• Type I2C
• Packaging Tube Alternate Packaging
• Unit-Weight 0.005069 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-Narrow-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 4
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 10 Mb/s
• Channel-Type Bidirectional, Unidirectional
• Voltage-Isolation 2500Vrms
• Shutdown Shutdown
• Rise-Fall-Time-Typ -
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/3/3 0:00:00
• Common-Mode-Transient-Immunity-Min 35kV/μs
• Propagation-Delay-tpLH-tpHL-Max -
• Pulse-Width-Distortion-Max -
• Pd-Power-Dissipation 275 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Bidirectional Unidirectional
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 7.2 mA
• Isolation-Voltage 2.5 kVrms
• Protocol-Supported I2C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Time 44 ns
