SI8431AB-D-IS1

SI8431AB-D-IS1 Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.006637 oz SMD/SMT Mounting-Style SOIC-16 Narrow Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 3 Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs (Typ) of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 35ns, 35ns The minimum pulse width distortion is 25ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. 6 mA is 92 nA. Isolation voltage of 2.5 kVrms Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V 35 ns is 23 microseconds.

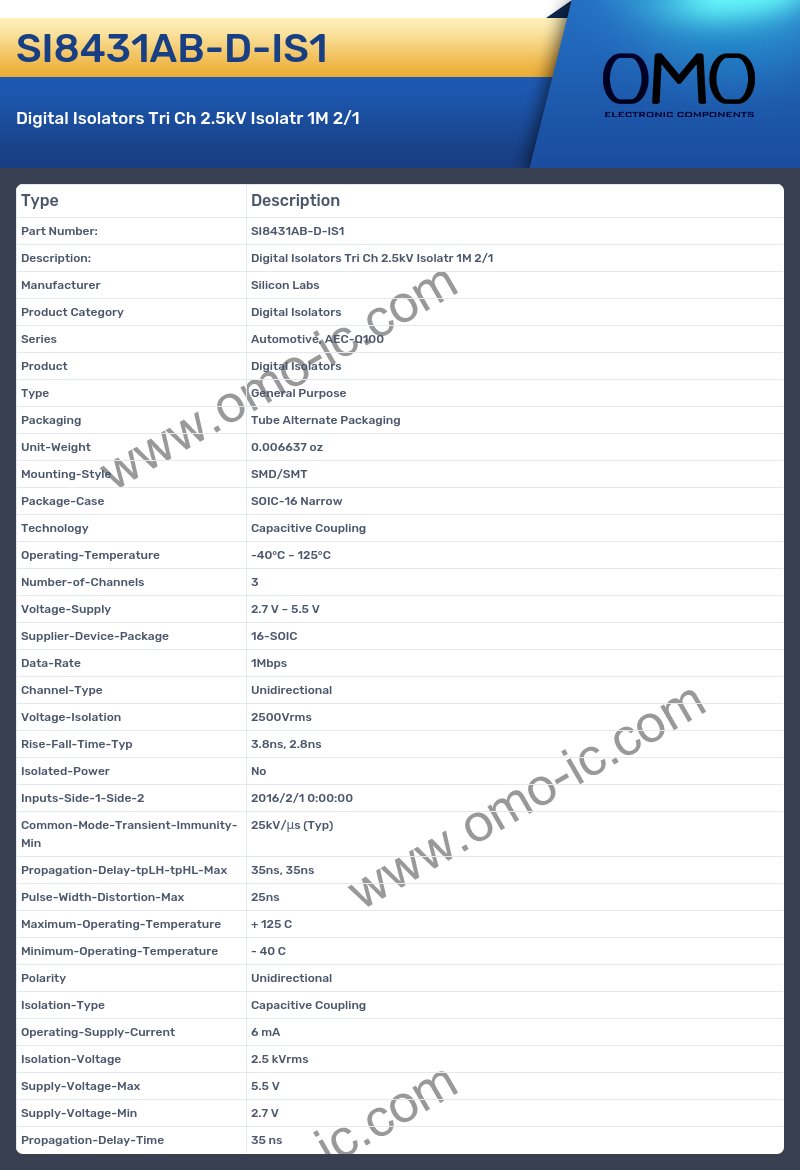

SI8431AB-D-IS1 Image

SI8431AB-D-IS1 Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Automotive, AEC-Q100
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006637 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Narrow
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 3
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 1Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ 3.8ns, 2.8ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs (Typ)
• Propagation-Delay-tpLH-tpHL-Max 35ns, 35ns
• Pulse-Width-Distortion-Max 25ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 6 mA
• Isolation-Voltage 2.5 kVrms
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Propagation-Delay-Time 35 ns
