SI8261ABC-C-IPR

SI8261ABC-C-IPR Overview

Product belongs to the Automotive, AEC-Q100 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.080001 oz Through Hole Mounting-Style DIP-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 1 Voltage Supply Range: 9.4 V ~ 30 V Supplier device package: 8-DIP Gull Wing The product's 600mA is 4A. This product is designed with 3750Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Minimum 35kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 60ns, 50ns The minimum pulse width distortion is 28ns. Power-off control: 300 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 30 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 5 V

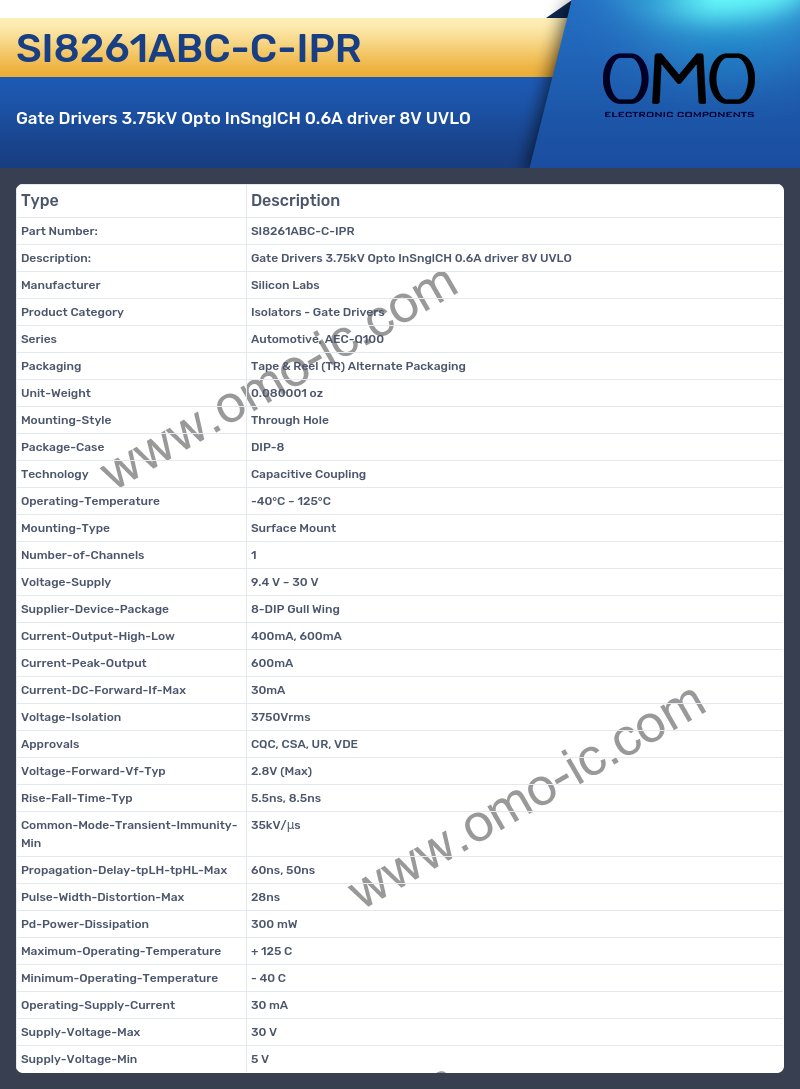

SI8261ABC-C-IPR Image

SI8261ABC-C-IPR Specifications

• Manufacturer Silicon Labs
• Product Category Isolators - Gate Drivers
• Series Automotive, AEC-Q100
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.080001 oz
• Mounting-Style Through Hole
• Package-Case DIP-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 1
• Voltage-Supply 9.4 V ~ 30 V
• Supplier-Device-Package 8-DIP Gull Wing
• Current-Output-High-Low 400mA, 600mA
• Current-Peak-Output 600mA
• Current-DC-Forward-If-Max 30mA
• Voltage-Isolation 3750Vrms
• Approvals CQC, CSA, UR, VDE
• Voltage-Forward-Vf-Typ 2.8V (Max)
• Rise-Fall-Time-Typ 5.5ns, 8.5ns
• Common-Mode-Transient-Immunity-Min 35kV/μs
• Propagation-Delay-tpLH-tpHL-Max 60ns, 50ns
• Pulse-Width-Distortion-Max 28ns
• Pd-Power-Dissipation 300 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 30 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 5 V
