SI8261ABC-C-IP

SI8261ABC-C-IP Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Driver ICs - Various Type: IGBT and MOSFET Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.080001 oz SMD/SMT Mounting-Style DIP-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 1 Voltage Supply Range: 9.4 V ~ 30 V Supplier device package: 8-DIP Gull Wing Configuration Single Number-of-Outputs: 2 The product's 600mA is 4A. This product is designed with 3750Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Power-off control: No Minimum 35kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 60ns, 50ns The minimum pulse width distortion is 28ns. Power-off control: 300 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 0.4 V 2 mA is 92 nA. Output current: 10 mA This product has a 8.5 ns of 16 ns. This product has a 5.5 ns of 16 ns. Maximum supply voltage of 30 V Minimum supply voltage is 5 V Number-of-Drivers: 1 Driver

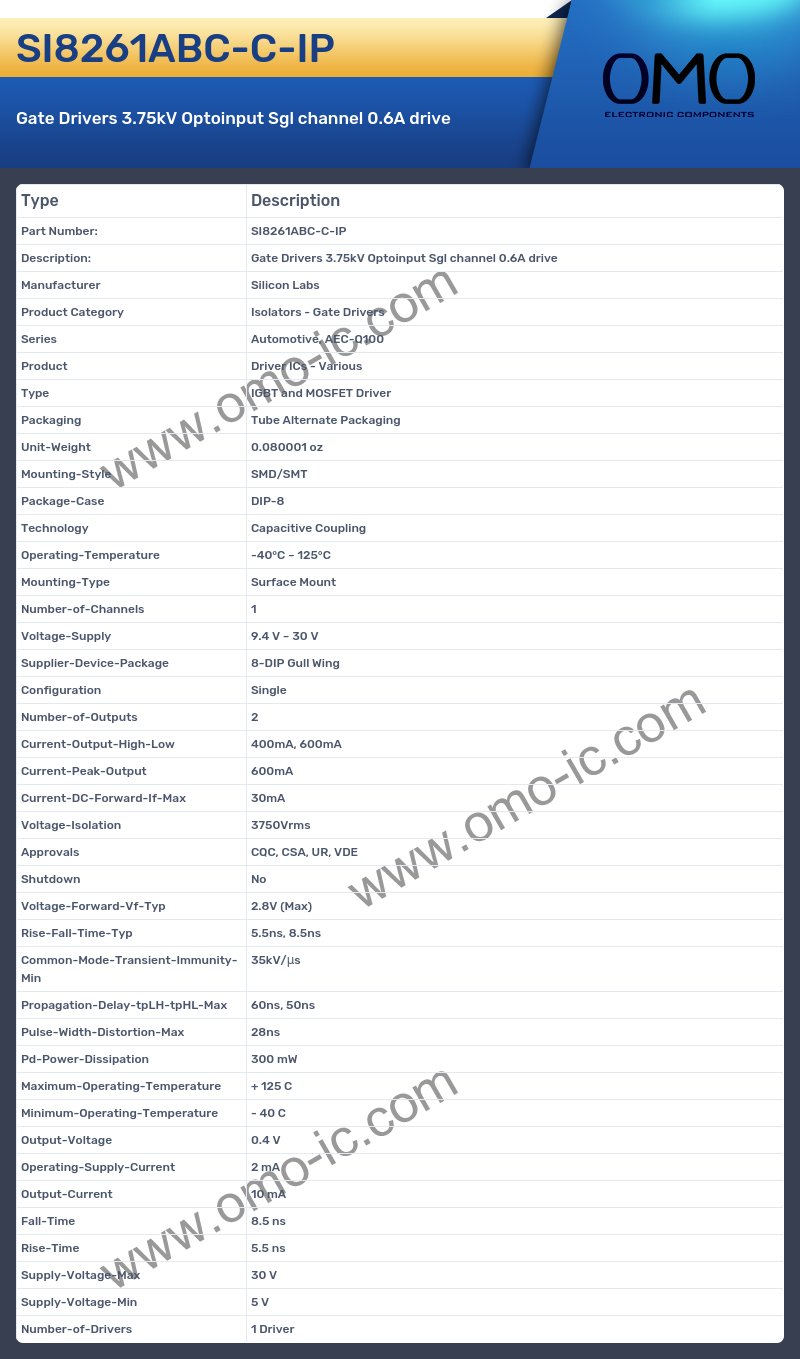

SI8261ABC-C-IP Image

SI8261ABC-C-IP Specifications

• Manufacturer Silicon Labs
• Product Category Isolators - Gate Drivers
• Series Automotive, AEC-Q100
• Product Driver ICs - Various
• Type IGBT and MOSFET Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.080001 oz
• Mounting-Style SMD/SMT
• Package-Case DIP-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 1
• Voltage-Supply 9.4 V ~ 30 V
• Supplier-Device-Package 8-DIP Gull Wing
• Configuration Single
• Number-of-Outputs 2
• Current-Output-High-Low 400mA, 600mA
• Current-Peak-Output 600mA
• Current-DC-Forward-If-Max 30mA
• Voltage-Isolation 3750Vrms
• Approvals CQC, CSA, UR, VDE
• Shutdown No
• Voltage-Forward-Vf-Typ 2.8V (Max)
• Rise-Fall-Time-Typ 5.5ns, 8.5ns
• Common-Mode-Transient-Immunity-Min 35kV/μs
• Propagation-Delay-tpLH-tpHL-Max 60ns, 50ns
• Pulse-Width-Distortion-Max 28ns
• Pd-Power-Dissipation 300 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 0.4 V
• Operating-Supply-Current 2 mA
• Output-Current 10 mA
• Fall-Time 8.5 ns
• Rise-Time 5.5 ns
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 5 V
• Number-of-Drivers 1 Driver
