SI82396BD-IS Overview

Product belongs to the Automotive, AEC-Q100 series. Tube is the packaging method for this product 16-SOIC (0.295", 7.50mm Width) Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 2 Voltage Supply Range: 10 V ~ 24 V Supplier device package: 16-SOIC The product's 4A is 4A. This product is designed with 5000Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Minimum 35kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 40ns, 40ns The minimum pulse width distortion is 5.6ns.

SI82396BD-IS Image

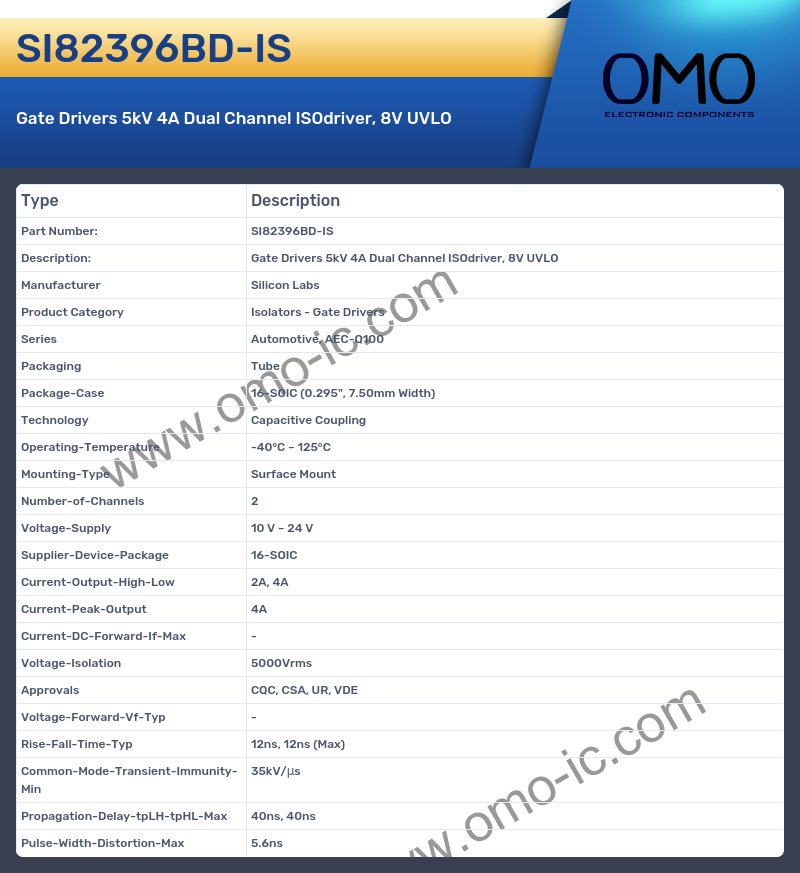

SI82396BD-IS Specifications

• Manufacturer Silicon Labs
• Product Category Isolators - Gate Drivers
• Series Automotive, AEC-Q100
• Packaging Tube
• Package-Case 16-SOIC (0.295", 7.50mm Width)
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 2
• Voltage-Supply 10 V ~ 24 V
• Supplier-Device-Package 16-SOIC
• Current-Output-High-Low 2A, 4A
• Current-Peak-Output 4A
• Current-DC-Forward-If-Max -
• Voltage-Isolation 5000Vrms
• Approvals CQC, CSA, UR, VDE
• Voltage-Forward-Vf-Typ -
• Rise-Fall-Time-Typ 12ns, 12ns (Max)
• Common-Mode-Transient-Immunity-Min 35kV/μs
• Propagation-Delay-tpLH-tpHL-Max 40ns, 40ns
• Pulse-Width-Distortion-Max 5.6ns
