SI8238AB-D-IS1

SI8238AB-D-IS1 Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as MOSFET Gate Drivers Type: Isolated Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.017932 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 2 Voltage Supply Range: 6.5 V ~ 24 V Supplier device package: 16-SOIC Configuration Dual Number-of-Outputs: 2 Output The product's 4A is 4A. This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Power-off control: Yes Minimum 20kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 60ns, 60ns The minimum pulse width distortion is 5.6ns. Power-off control: 1.2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 3.5 mA is 92 nA. Output current: 6 mA This product has a 12 ns of 16 ns. This product has a 12 ns of 16 ns. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Drivers: 2 Driver This product has a Maximum-Turn-Off-Delay-Time of 60 ns. 60 ns maximum turn-on delay time

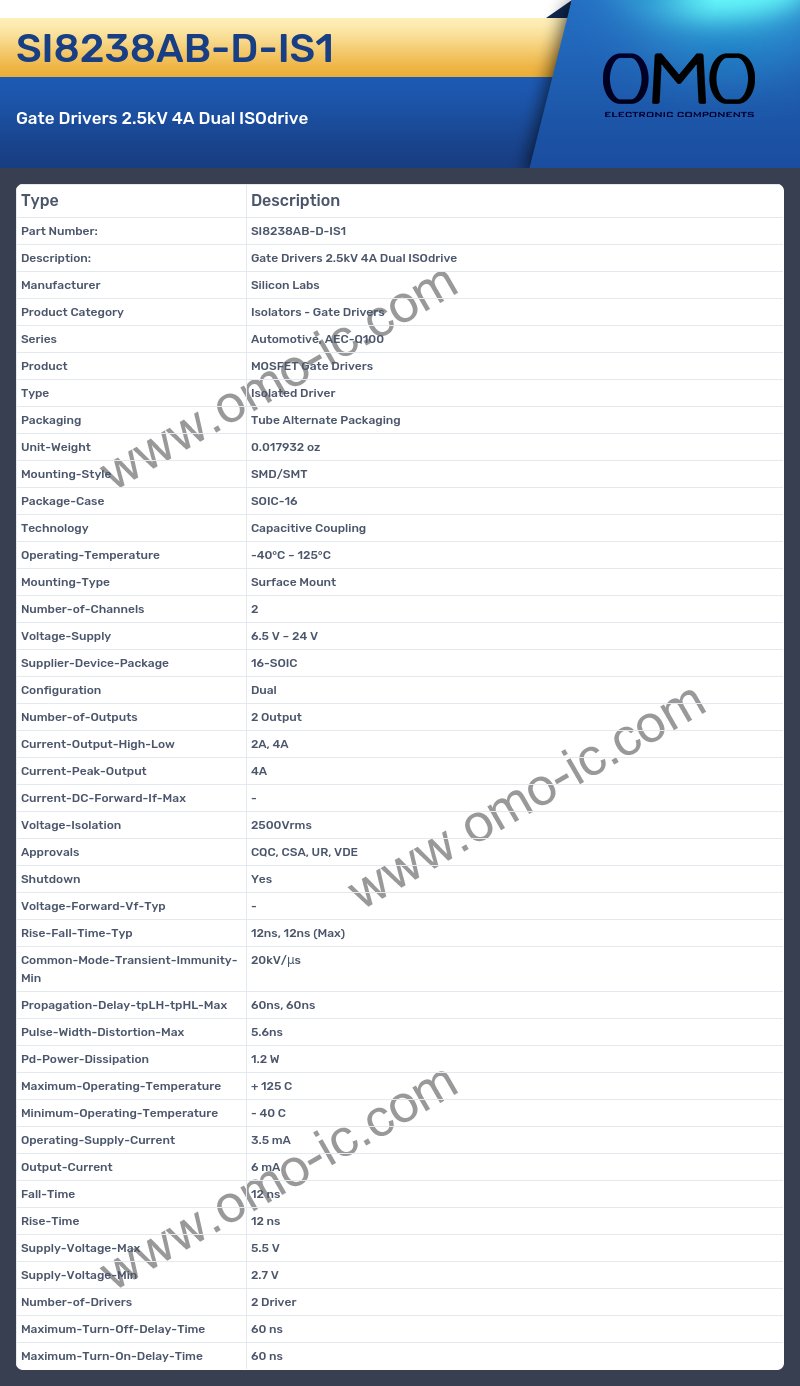

SI8238AB-D-IS1 Image

SI8238AB-D-IS1 Specifications

• Manufacturer Silicon Labs
• Product Category Isolators - Gate Drivers
• Series Automotive, AEC-Q100
• Product MOSFET Gate Drivers
• Type Isolated Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017932 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 2
• Voltage-Supply 6.5 V ~ 24 V
• Supplier-Device-Package 16-SOIC
• Configuration Dual
• Number-of-Outputs 2 Output
• Current-Output-High-Low 2A, 4A
• Current-Peak-Output 4A
• Current-DC-Forward-If-Max -
• Voltage-Isolation 2500Vrms
• Approvals CQC, CSA, UR, VDE
• Shutdown Yes
• Voltage-Forward-Vf-Typ -
• Rise-Fall-Time-Typ 12ns, 12ns (Max)
• Common-Mode-Transient-Immunity-Min 20kV/μs
• Propagation-Delay-tpLH-tpHL-Max 60ns, 60ns
• Pulse-Width-Distortion-Max 5.6ns
• Pd-Power-Dissipation 1.2 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3.5 mA
• Output-Current 6 mA
• Fall-Time 12 ns
• Rise-Time 12 ns
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Drivers 2 Driver
• Maximum-Turn-Off-Delay-Time 60 ns
• Maximum-Turn-On-Delay-Time 60 ns
