SI8232BD-D-IS

SI8232BD-D-IS Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as MOSFET Gate Drivers Type: Isolated Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.017932 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 2 Voltage Supply Range: 9.4 V ~ 24 V Supplier device package: 16-SOIC Configuration Dual Number-of-Outputs: 2 Output The product's 500mA is 4A. This product is designed with 5000Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Power-off control: Yes Minimum 20kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 60ns, 60ns The minimum pulse width distortion is 5.6ns. Power-off control: 1.2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 3.5 mA is 92 nA. Output current: 6 mA This product has a 20 ns of 16 ns. This product has a 20 ns of 16 ns. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Drivers: 2 Driver This product has a Maximum-Turn-Off-Delay-Time of 60 ns. 60 ns maximum turn-on delay time

SI8232BD-D-IS Image

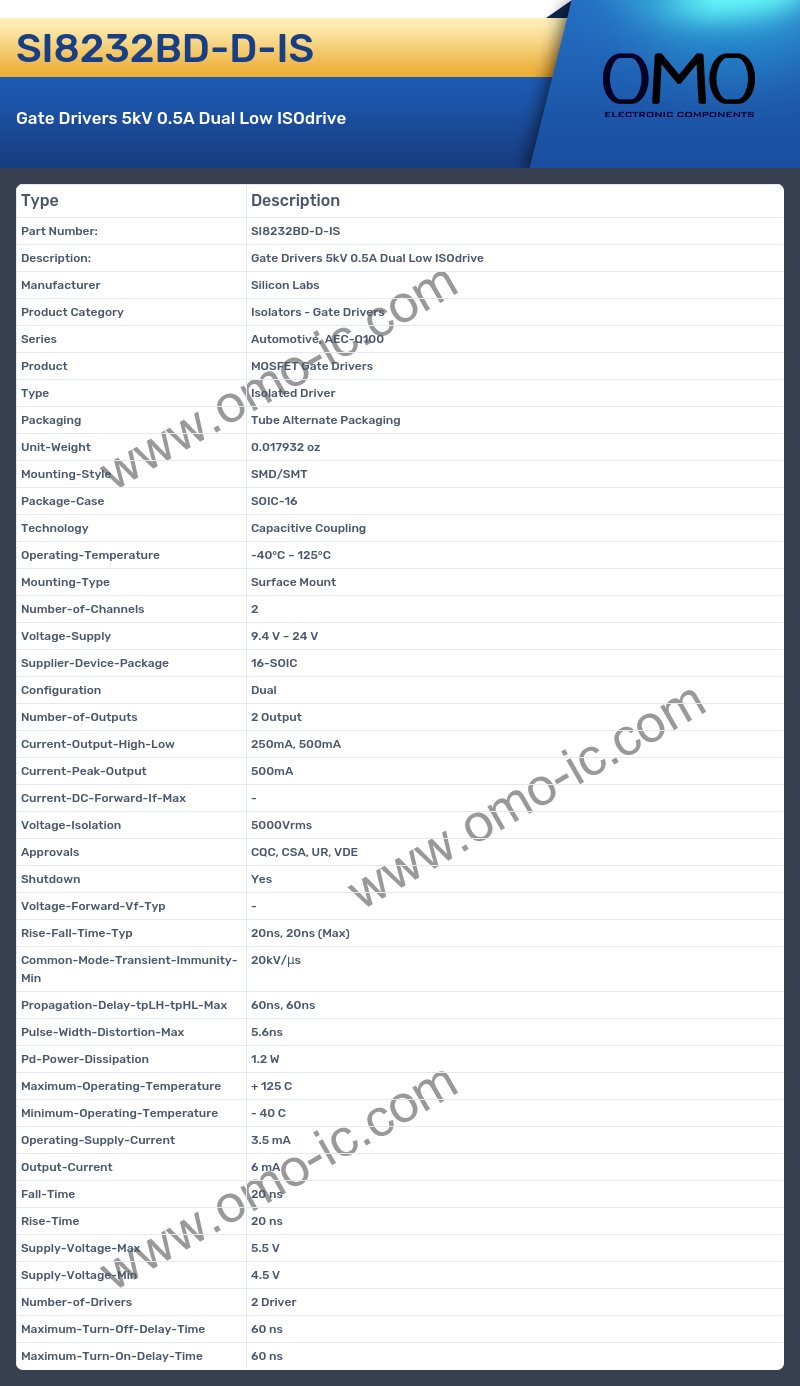

SI8232BD-D-IS Specifications

• Manufacturer Silicon Labs
• Product Category Isolators - Gate Drivers
• Series Automotive, AEC-Q100
• Product MOSFET Gate Drivers
• Type Isolated Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017932 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 2
• Voltage-Supply 9.4 V ~ 24 V
• Supplier-Device-Package 16-SOIC
• Configuration Dual
• Number-of-Outputs 2 Output
• Current-Output-High-Low 250mA, 500mA
• Current-Peak-Output 500mA
• Current-DC-Forward-If-Max -
• Voltage-Isolation 5000Vrms
• Approvals CQC, CSA, UR, VDE
• Shutdown Yes
• Voltage-Forward-Vf-Typ -
• Rise-Fall-Time-Typ 20ns, 20ns (Max)
• Common-Mode-Transient-Immunity-Min 20kV/μs
• Propagation-Delay-tpLH-tpHL-Max 60ns, 60ns
• Pulse-Width-Distortion-Max 5.6ns
• Pd-Power-Dissipation 1.2 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3.5 mA
• Output-Current 6 mA
• Fall-Time 20 ns
• Rise-Time 20 ns
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 2 Driver
• Maximum-Turn-Off-Delay-Time 60 ns
• Maximum-Turn-On-Delay-Time 60 ns
