SI8220DB-D-IS

SI8220DB-D-IS Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as MOSFET Gate Drivers Type: Isolated Driver Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 1 Voltage Supply Range: 14.8 V ~ 24 V Supplier device package: 8-SOIC Configuration Single Number-of-Outputs: 1 Output The product's 2.5A is 4A. This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product has received CQC, CSA, UR, VDE approvals for safety and reliability. Minimum 30kV/μs (Typ) of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 60ns, 40ns The minimum pulse width distortion is -. Power-off control: 1.2 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 20 mA is 92 nA. Output current: 2.5 A This product has a 30 ns of 16 ns. This product has a 30 ns of 16 ns. Maximum supply voltage of 24 V Minimum supply voltage is 6.5 V Number-of-Drivers: 1 Driver This product has a Maximum-Turn-Off-Delay-Time of 40 ns. 60 ns maximum turn-on delay time

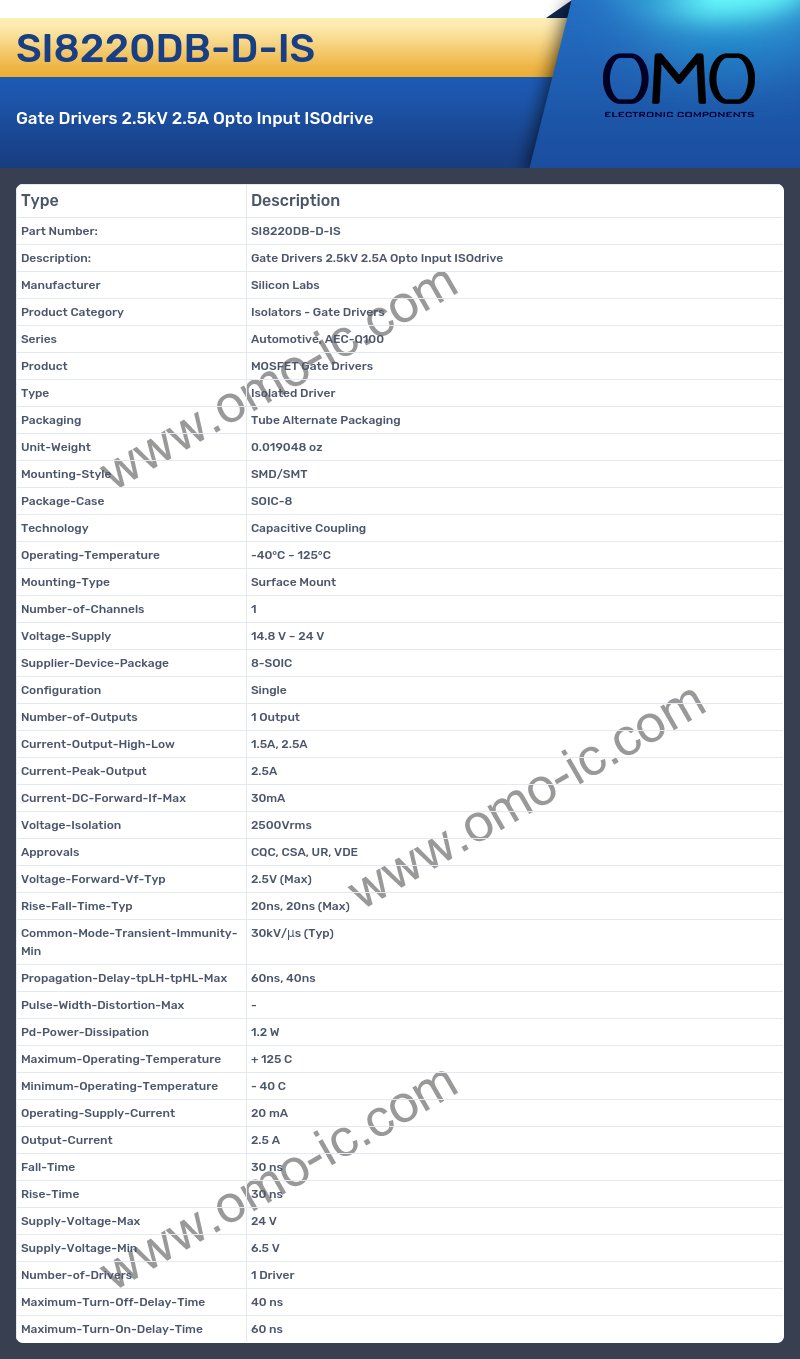

SI8220DB-D-IS Image

SI8220DB-D-IS Specifications

• Manufacturer Silicon Labs
• Product Category Isolators - Gate Drivers
• Series Automotive, AEC-Q100
• Product MOSFET Gate Drivers
• Type Isolated Driver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 1
• Voltage-Supply 14.8 V ~ 24 V
• Supplier-Device-Package 8-SOIC
• Configuration Single
• Number-of-Outputs 1 Output
• Current-Output-High-Low 1.5A, 2.5A
• Current-Peak-Output 2.5A
• Current-DC-Forward-If-Max 30mA
• Voltage-Isolation 2500Vrms
• Approvals CQC, CSA, UR, VDE
• Voltage-Forward-Vf-Typ 2.5V (Max)
• Rise-Fall-Time-Typ 20ns, 20ns (Max)
• Common-Mode-Transient-Immunity-Min 30kV/μs (Typ)
• Propagation-Delay-tpLH-tpHL-Max 60ns, 40ns
• Pulse-Width-Distortion-Max -
• Pd-Power-Dissipation 1.2 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 20 mA
• Output-Current 2.5 A
• Fall-Time 30 ns
• Rise-Time 30 ns
• Supply-Voltage-Max 24 V
• Supply-Voltage-Min 6.5 V
• Number-of-Drivers 1 Driver
• Maximum-Turn-Off-Delay-Time 40 ns
• Maximum-Turn-On-Delay-Time 60 ns
