SD3932 Overview

Product belongs to the SD3932 series. Type: RF Power MOSFET Tube is the packaging method for this product SMD/SMT Mounting-Style M244 Si is the technology used. The device offers a 26.8 dB at 123 MHz of 26dB. Power-off control: 500 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C The operating frequency is 250 MHz. This product's +/- 20 V. The ID of continuous drain current is 20 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 250 V. The transistor polarity is N-Channel.

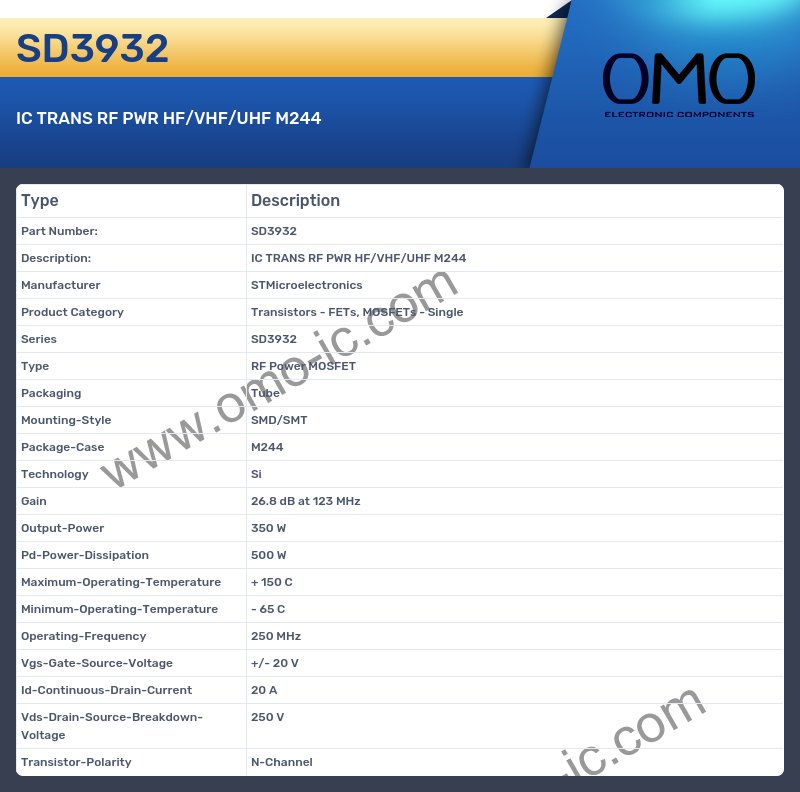

SD3932 Image

SD3932 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series SD3932
• Type RF Power MOSFET
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case M244
• Technology Si
• Gain 26.8 dB at 123 MHz
• Output-Power 350 W
• Pd-Power-Dissipation 500 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Operating-Frequency 250 MHz
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 20 A
• Vds-Drain-Source-Breakdown-Voltage 250 V
• Transistor-Polarity N-Channel
