REG103FA-3.3KTTT

REG103FA-3.3KTTT Overview

Product belongs to the REG103-33 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.051355 oz SMD/SMT Mounting-Style TO-263-5 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Fixed Supplier device package: DDPAK/TO-263-5 Up to 15V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: 3.3 V Maximum Input Voltage: 15 V Output current: 500 mA The product's + 2.1 V is 5.1 V. The voltage regulation accuracy of this product is 2 %. Input bias current of 500 uA Reference voltage is 1.295 V . The 0.003 V at 10 mA. The maximum 25 mV at 10 mA is 360 mV.

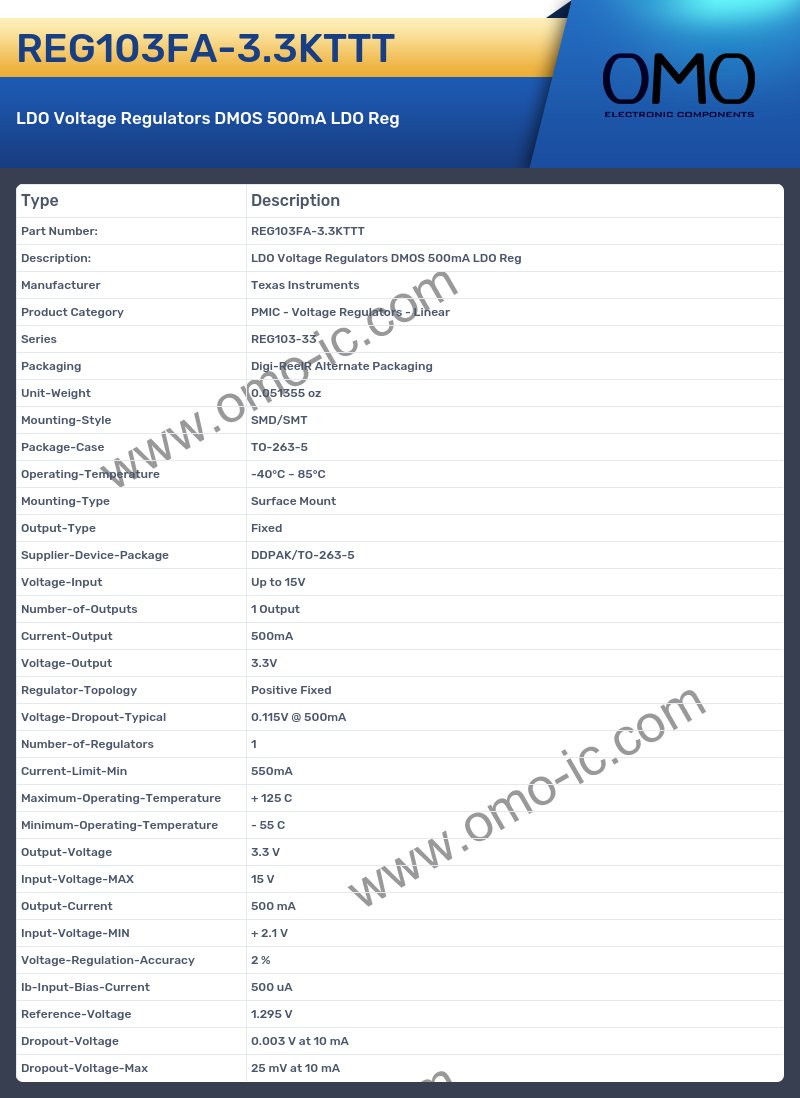

REG103FA-3.3KTTT Image

REG103FA-3.3KTTT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series REG103-33
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.051355 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-5
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package DDPAK/TO-263-5
• Voltage-Input Up to 15V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.115V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min 550mA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 15 V
• Output-Current 500 mA
• Input-Voltage-MIN + 2.1 V
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 500 uA
• Reference-Voltage 1.295 V
• Dropout-Voltage 0.003 V at 10 mA
• Dropout-Voltage-Max 25 mV at 10 mA
