REF191ESZ-REEL Overview

Product belongs to the REF19 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Tolerance of ±0.1% 3 V ~ 15 V voltage input This product has a 45μA of 200μA. Series is the reference type. Minimum fixed output voltage is 2.048V . 5ppm/°C is 30 parts per million per degree Celsius. 20μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 2.048 V Input Voltage Range: 18 V Initial accuracy: 2 mV Maximum shunt current of 30 mA

REF191ESZ-REEL Image

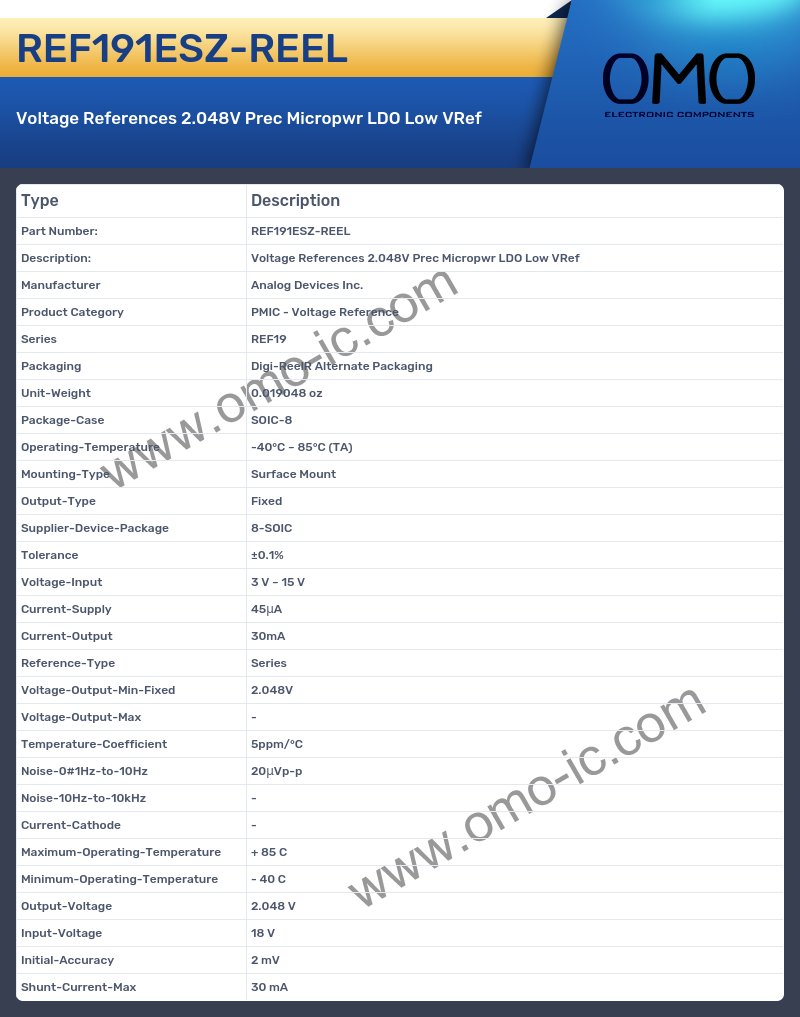

REF191ESZ-REEL Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Reference
• Series REF19
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.019048 oz
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Tolerance ±0.1%
• Voltage-Input 3 V ~ 15 V
• Current-Supply 45μA
• Current-Output 30mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 2.048V
• Voltage-Output-Max -
• Temperature-Coefficient 5ppm/°C
• Noise-0#1Hz-to-10Hz 20μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.048 V
• Input-Voltage 18 V
• Initial-Accuracy 2 mV
• Shunt-Current-Max 30 mA
