REF01CSZ-REEL7 Overview

Product belongs to the REF01 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Tolerance of ±1% 12 V ~ 40 V voltage input This product has a 1.6mA of 200μA. Series is the reference type. Minimum fixed output voltage is 10V . 65ppm/°C is 30 parts per million per degree Celsius. 30μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 10 V Input Voltage Range: 36 V Initial accuracy: +/- 10 mV Maximum input voltage of 36 V for Series VREF. Maximum shunt current of 8 mA

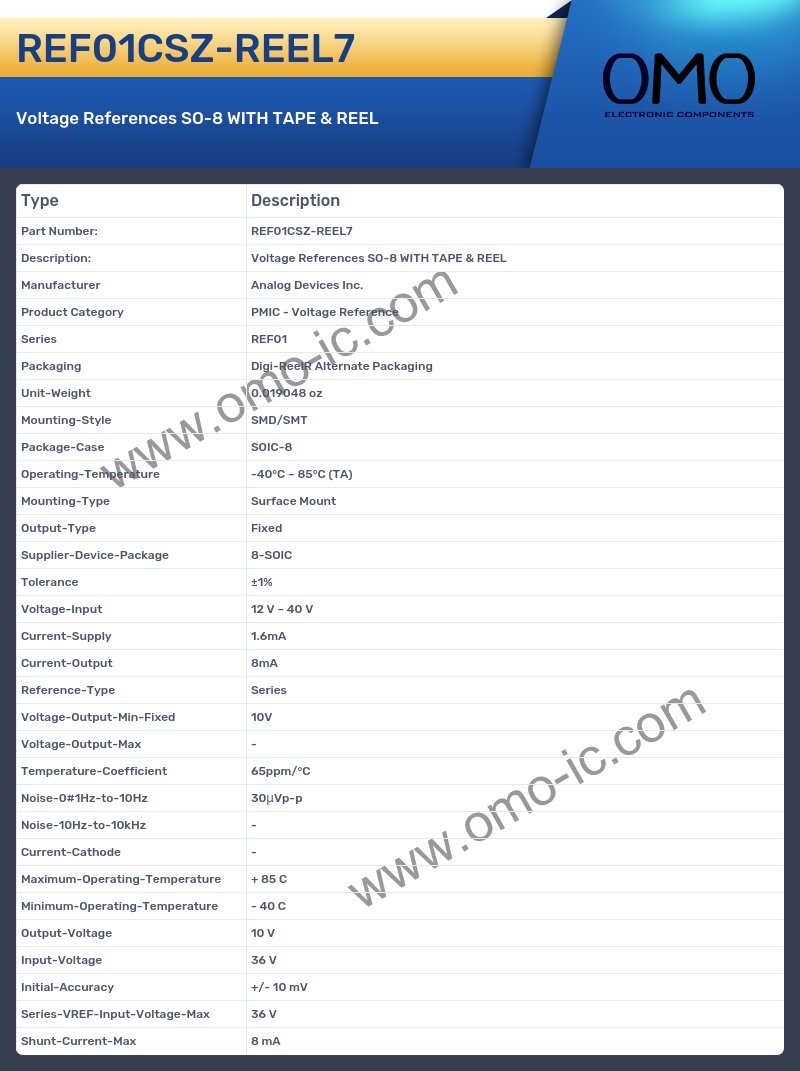

REF01CSZ-REEL7 Image

REF01CSZ-REEL7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Reference
• Series REF01
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Tolerance ±1%
• Voltage-Input 12 V ~ 40 V
• Current-Supply 1.6mA
• Current-Output 8mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 10V
• Voltage-Output-Max -
• Temperature-Coefficient 65ppm/°C
• Noise-0#1Hz-to-10Hz 30μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 10 V
• Input-Voltage 36 V
• Initial-Accuracy +/- 10 mV
• Series-VREF-Input-Voltage-Max 36 V
• Shunt-Current-Max 8 mA
