PTN78000WAH

PTN78000WAH Overview

Product belongs to the PTN78000W series. This product is categorized as Non-Isolated / POL Type: Non-Isolated PoL Module Tray is the packaging method for this product Through Hole Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications 5-DIP Module Operational temperature range: -40°C ~ 85°C Through Hole mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 1.5A of 50mA for efficient power management. The minimum input voltage is 7V. The 36V. This product is designed with - voltage isolation for maximum safety and reliability. 2.5 ~ 12.6 V output voltage Input Voltage Range: 7 V to 36 V 2.5 V to 12.6 V output voltage for channel 1 Current output of channel 1 is 1.5 A . Through Hole Module package-case-size

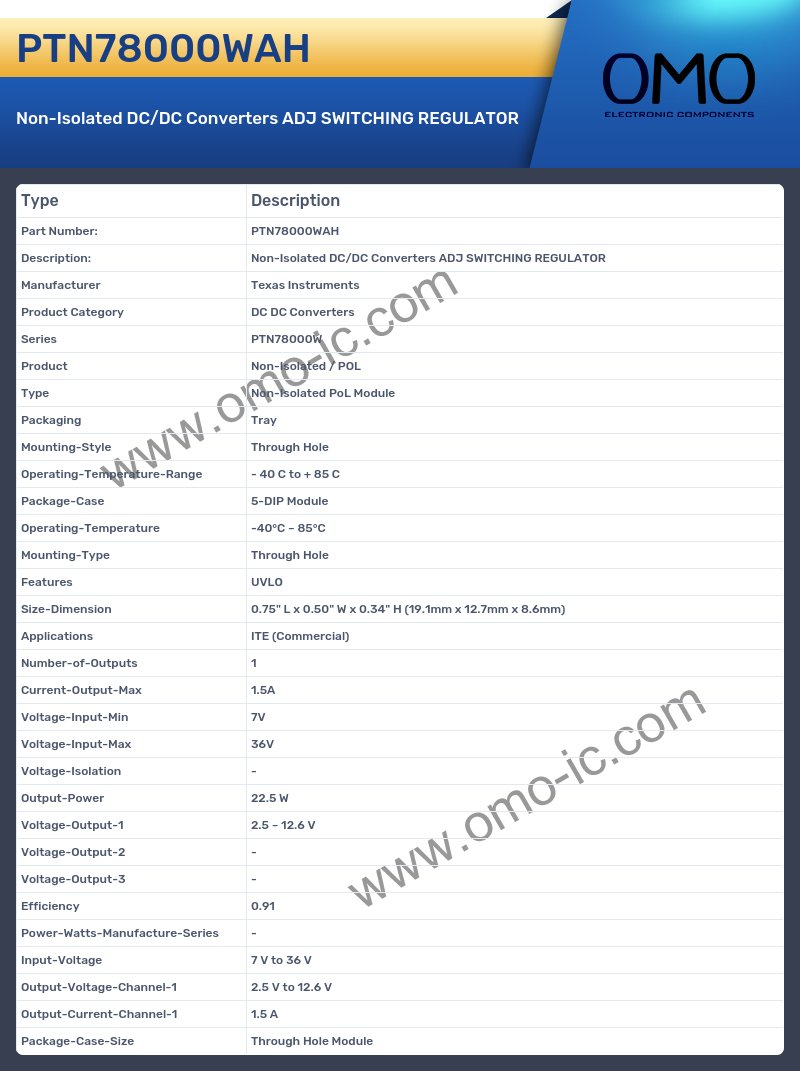

PTN78000WAH Image

PTN78000WAH Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PTN78000W
• Product Non-Isolated / POL
• Type Non-Isolated PoL Module
• Packaging Tray
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 5-DIP Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Features UVLO
• Size-Dimension 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 1.5A
• Voltage-Input-Min 7V
• Voltage-Input-Max 36V
• Voltage-Isolation -
• Output-Power 22.5 W
• Voltage-Output-1 2.5 ~ 12.6 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.91
• Power-Watts-Manufacture-Series -
• Input-Voltage 7 V to 36 V
• Output-Voltage-Channel-1 2.5 V to 12.6 V
• Output-Current-Channel-1 1.5 A
• Package-Case-Size Through Hole Module
