PTMA401120A1AZ Overview

Product belongs to the PTMA40xx series. This product is categorized as Isolated Type: Isolated Module Tray is the packaging method for this product SMD/SMT Mounting-Style 4-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 1A of 50mA for efficient power management. The minimum input voltage is 36V. The 75V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 12V output voltage Input Voltage Range: 36 V to 75 V 12 V output voltage for channel 1 Current output of channel 1 is 1 A . SMD Module package-case-size

PTMA401120A1AZ Image

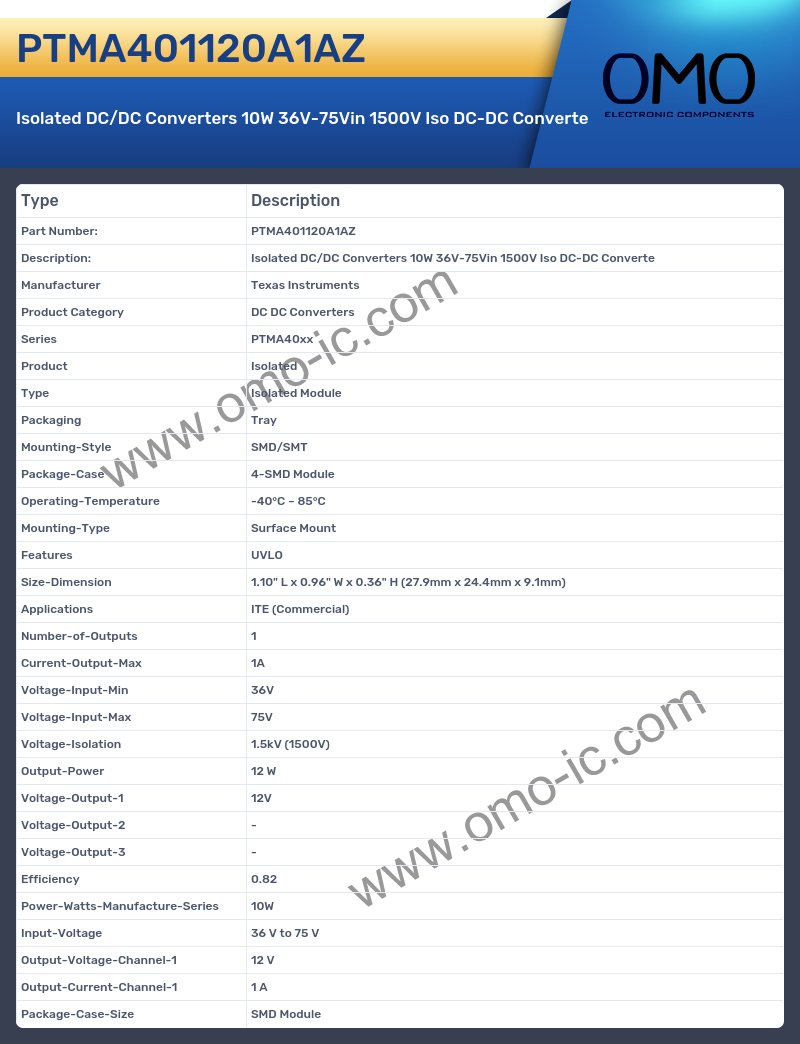

PTMA401120A1AZ Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PTMA40xx
• Product Isolated
• Type Isolated Module
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case 4-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features UVLO
• Size-Dimension 1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 1A
• Voltage-Input-Min 36V
• Voltage-Input-Max 75V
• Voltage-Isolation 1.5kV (1500V)
• Output-Power 12 W
• Voltage-Output-1 12V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.82
• Power-Watts-Manufacture-Series 10W
• Input-Voltage 36 V to 75 V
• Output-Voltage-Channel-1 12 V
• Output-Current-Channel-1 1 A
• Package-Case-Size SMD Module
