PTH05020WAS

PTH05020WAS Overview

Product belongs to the PTH05020W series. This product is categorized as Non-Isolated / POL Type: Non-Isolated PoL Module Tray is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications 10-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 22A of 50mA for efficient power management. The minimum input voltage is 4.5V. The 5.5V. This product is designed with - voltage isolation for maximum safety and reliability. 0.8 ~ 3.6 V output voltage Input Voltage Range: 4.5 V to 5.5 V 3.6 V output voltage for channel 1 Current output of channel 1 is 22 A . Surface Mount Module package-case-size

PTH05020WAS Image

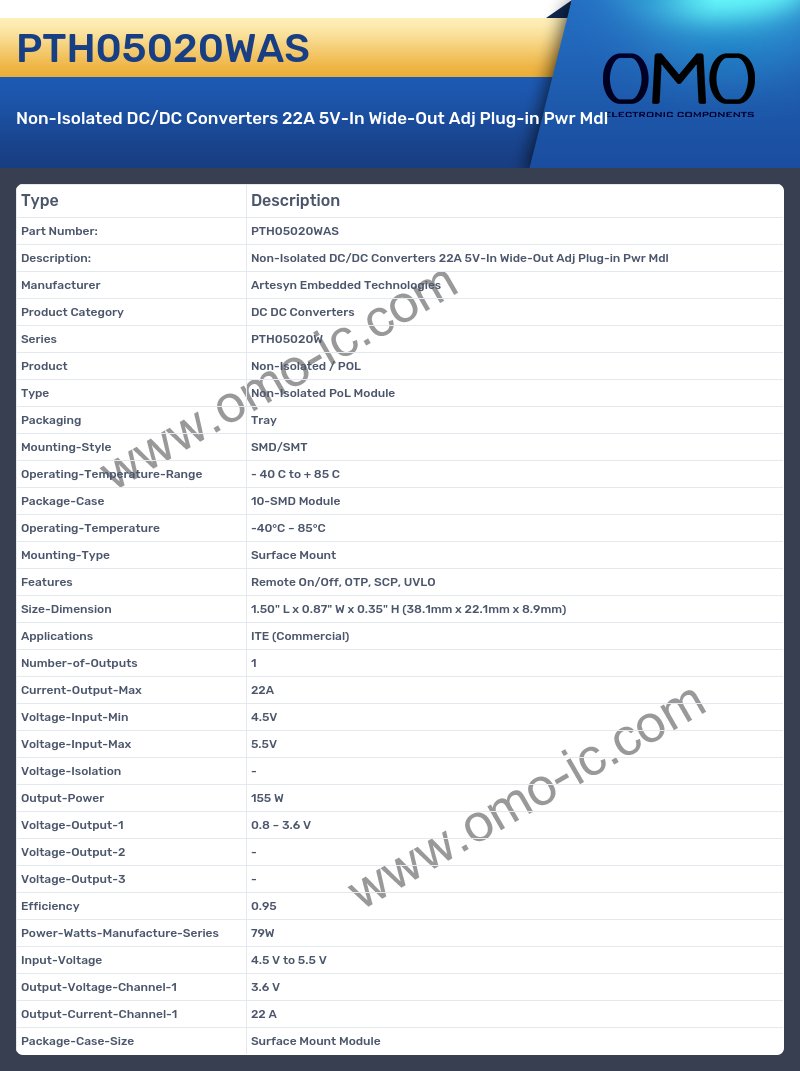

PTH05020WAS Specifications

• Manufacturer Artesyn Embedded Technologies
• Product Category DC DC Converters
• Series PTH05020W
• Product Non-Isolated / POL
• Type Non-Isolated PoL Module
• Packaging Tray
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 10-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, OTP, SCP, UVLO
• Size-Dimension 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 22A
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 5.5V
• Voltage-Isolation -
• Output-Power 155 W
• Voltage-Output-1 0.8 ~ 3.6 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.95
• Power-Watts-Manufacture-Series 79W
• Input-Voltage 4.5 V to 5.5 V
• Output-Voltage-Channel-1 3.6 V
• Output-Current-Channel-1 22 A
• Package-Case-Size Surface Mount Module
