PT4825C

PT4825C Overview

Product belongs to the Excalibur PT4820 series. Type: Isolated Module Tray is the packaging method for this product 21-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 3 Our product delivers a 8A, 6A, 6A of 50mA for efficient power management. The minimum input voltage is 36V. The 75V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 3.3V output voltage

PT4825C Image

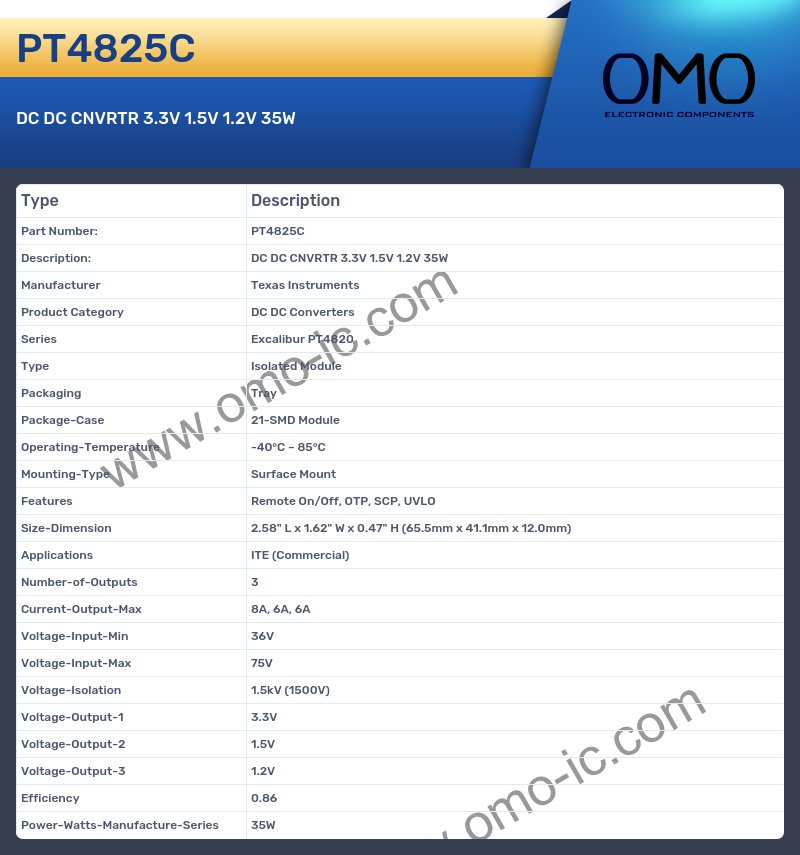

PT4825C Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT4820
• Type Isolated Module
• Packaging Tray
• Package-Case 21-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, OTP, SCP, UVLO
• Size-Dimension 2.58" L x 1.62" W x 0.47" H (65.5mm x 41.1mm x 12.0mm)
• Applications ITE (Commercial)
• Number-of-Outputs 3
• Current-Output-Max 8A, 6A, 6A
• Voltage-Input-Min 36V
• Voltage-Input-Max 75V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 3.3V
• Voltage-Output-2 1.5V
• Voltage-Output-3 1.2V
• Efficiency 0.86
• Power-Watts-Manufacture-Series 35W
