PT4561N

PT4561N Overview

Product belongs to the Excalibur PT4560 series. Type: Isolated Module Tray is the packaging method for this product 19-SIP Module Operational temperature range: -40°C ~ 85°C Through Hole mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 8A of 50mA for efficient power management. The minimum input voltage is 36V. The 75V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 3.3V output voltage

PT4561N Image

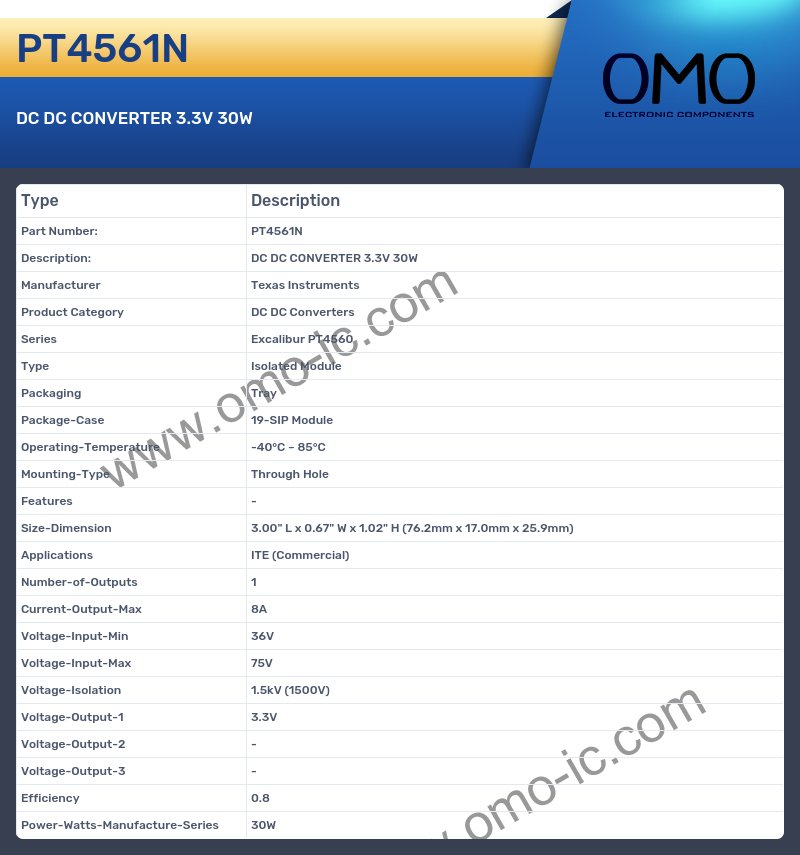

PT4561N Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT4560
• Type Isolated Module
• Packaging Tray
• Package-Case 19-SIP Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Features -
• Size-Dimension 3.00" L x 0.67" W x 1.02" H (76.2mm x 17.0mm x 25.9mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 8A
• Voltage-Input-Min 36V
• Voltage-Input-Max 75V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 3.3V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.8
• Power-Watts-Manufacture-Series 30W
