PM7545GPZ Overview

Product belongs to the PM7545 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product 20-DIP (0.300", 7.62mm) Operational temperature range: 0°C ~ 70°C Output-Type: Current - Unbuffered Supplier device package: 20-PDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 1μs is an impressive 15 us. No Differential-Output

PM7545GPZ Image

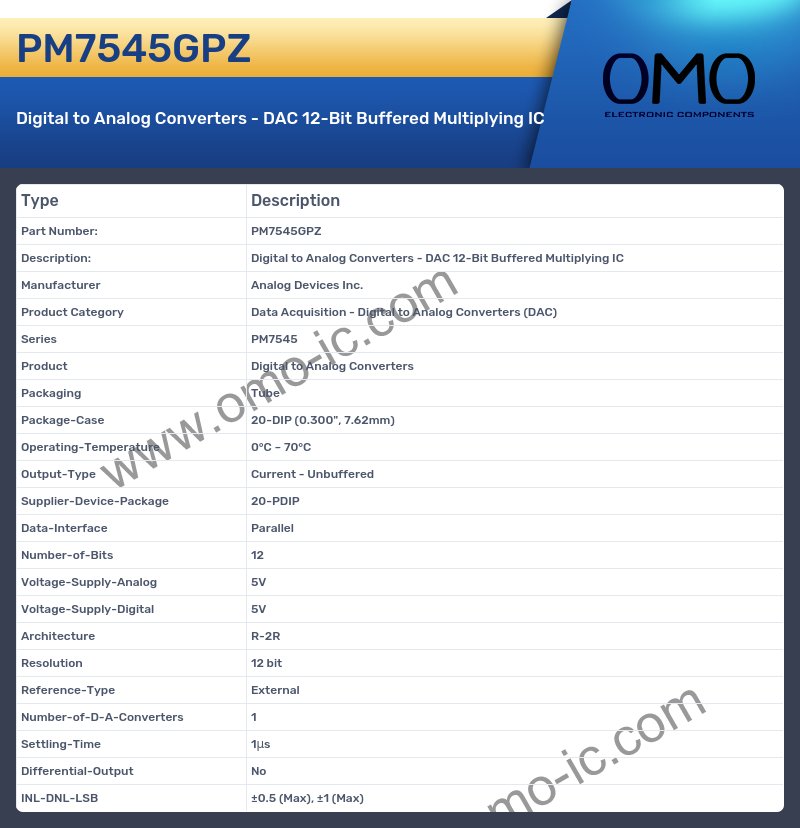

PM7545GPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series PM7545
• Product Digital to Analog Converters
• Packaging Tube
• Package-Case 20-DIP (0.300", 7.62mm)
• Operating-Temperature 0°C ~ 70°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 20-PDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 1μs
• Differential-Output No
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
