PM7543HPZ

PM7543HPZ Overview

Product belongs to the PM7543 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product 16-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 16-PDIP Data-Interface: Serial 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 380μs is an impressive 15 us. Yes Differential-Output

PM7543HPZ Image

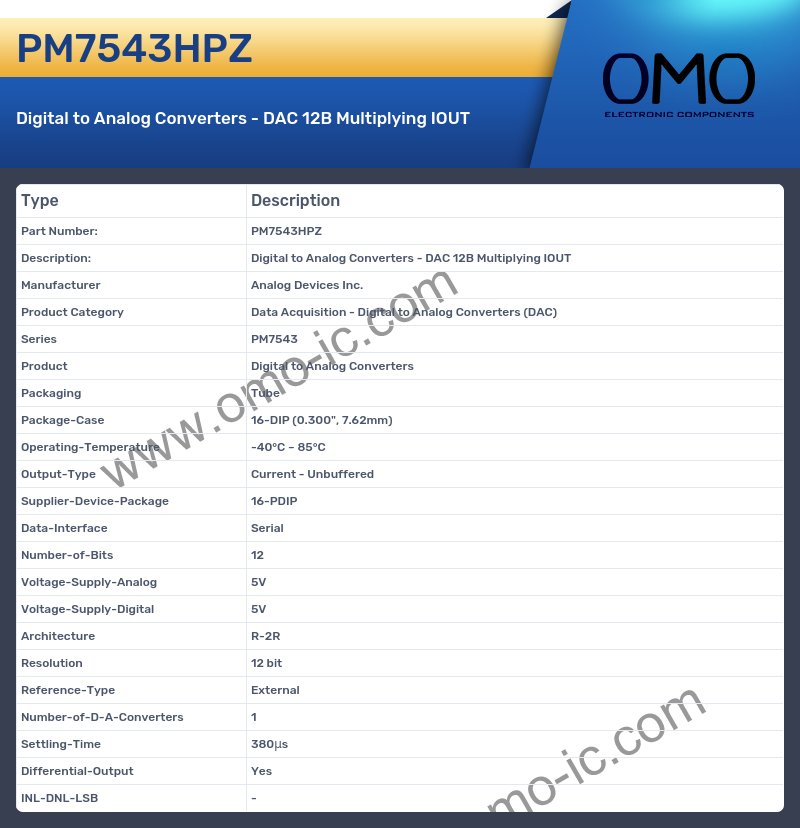

PM7543HPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series PM7543
• Product Digital to Analog Converters
• Packaging Tube
• Package-Case 16-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 16-PDIP
• Data-Interface Serial
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 380μs
• Differential-Output Yes
• INL-DNL-LSB -
