PIC24HJ12GP201-E/SO

PIC24HJ12GP201-E/SO Overview

Product belongs to the PICR 24H series. This product is categorized as MCU Tube is the packaging method for this product SMD/SMT Mounting-Style SOIC-18 Wide Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 18-SOIC This product has 13 I/O ports for versatile connectivity. Operating frequency: 40 MIPs Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 3 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 3 V to 3.6 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: PIC This product is powered by the PIC24H Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 40 MHz Number of ADC Channels: 6 6 This product has 13 I/O connections. This product has a 1 kB data RAM size, providing ample storage for complex applications. This product features 3 Timer number of timers and counters. This product features a high-precision 10 bit 12 bit, ensuring accurate data conversion.

PIC24HJ12GP201-E/SO Image

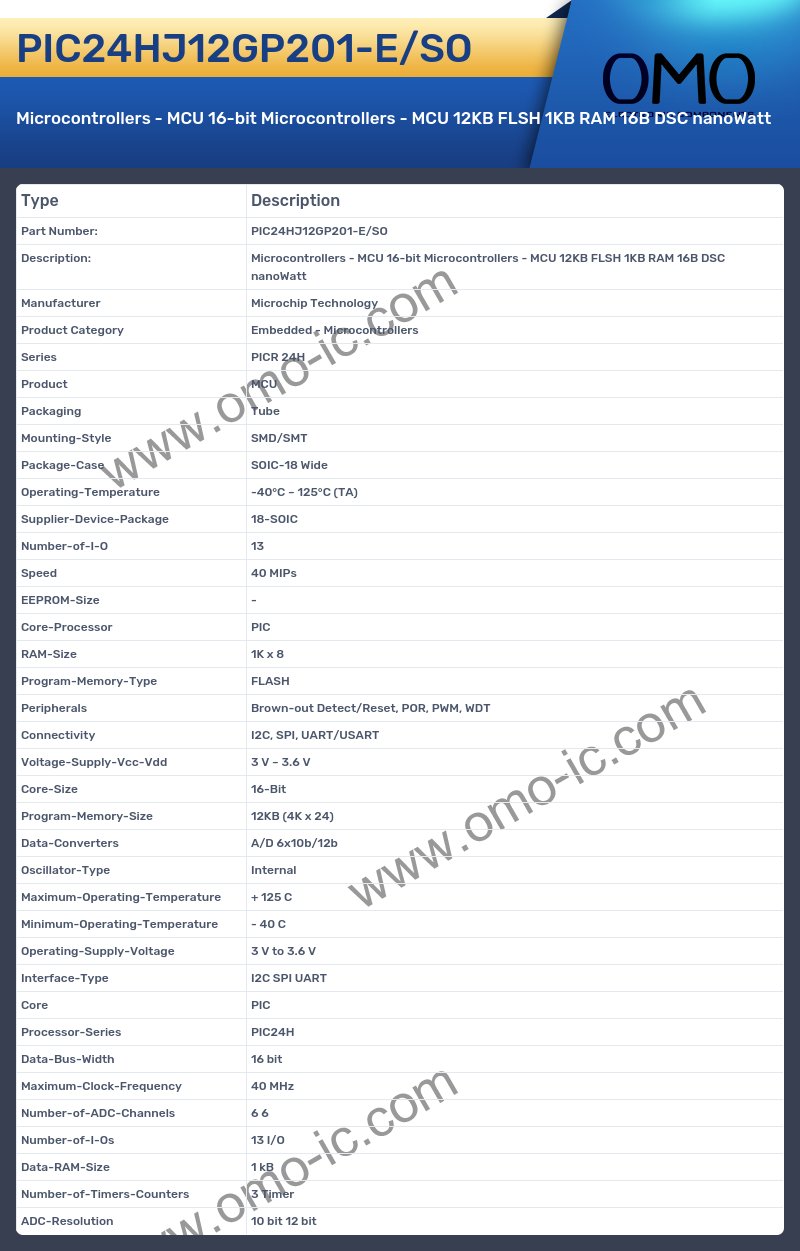

PIC24HJ12GP201-E/SO Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 24H
• Product MCU
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case SOIC-18 Wide
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 18-SOIC
• Number-of-I-O 13
• Speed 40 MIPs
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 3 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 12KB (4K x 24)
• Data-Converters A/D 6x10b/12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V to 3.6 V
• Interface-Type I2C SPI UART
• Core PIC
• Processor-Series PIC24H
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 40 MHz
• Number-of-ADC-Channels 6 6
• Number-of-I-Os 13 I/O
• Data-RAM-Size 1 kB
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 10 bit 12 bit
