PIC24EP512MC204-I/PT

PIC24EP512MC204-I/PT Overview

Product belongs to the PICR 24EP series. Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style TQFP-44 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 44-TQFP (10x10) This product has 35 I/O ports for versatile connectivity. Operating frequency: 70 MIPs Program memory type: FLASH I2C, IrDA, LIN, QEI, SPI, UART/USART interface Supply Voltage: 3 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V to 3.6 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: PIC This product is powered by the PIC24 Processor-Series, providing high performance and efficiency. The 16 bit. Number of ADC Channels: 9 This product has 35 I/O connections. This product has a 48 kB data RAM size, providing ample storage for complex applications. This product features 5 Timer number of timers and counters. This product features a high-precision 10 bit 12 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

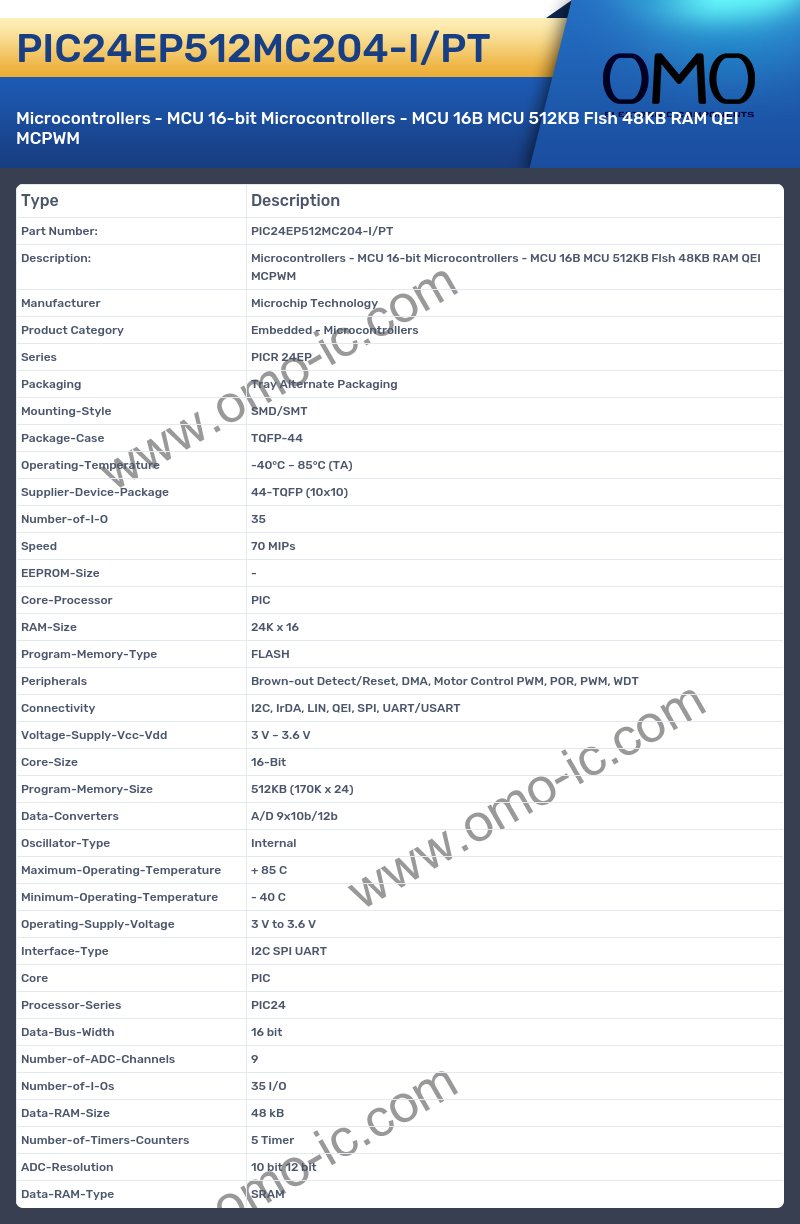

PIC24EP512MC204-I/PT Image

PIC24EP512MC204-I/PT Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 24EP
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case TQFP-44
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 44-TQFP (10x10)
• Number-of-I-O 35
• Speed 70 MIPs
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 24K x 16
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, QEI, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 3 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 512KB (170K x 24)
• Data-Converters A/D 9x10b/12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V to 3.6 V
• Interface-Type I2C SPI UART
• Core PIC
• Processor-Series PIC24
• Data-Bus-Width 16 bit
• Number-of-ADC-Channels 9
• Number-of-I-Os 35 I/O
• Data-RAM-Size 48 kB
• Number-of-Timers-Counters 5 Timer
• ADC-Resolution 10 bit 12 bit
• Data-RAM-Type SRAM
