PIC18LF24J11-I/SP

PIC18LF24J11-I/SP Overview

Product belongs to the PICR XLP 18J series. This product is categorized as MCU Tube is the packaging method for this product Through Hole Mounting-Style SPDIP-28 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 28-SPDIP This product has 16 I/O ports for versatile connectivity. Operating frequency: 48MHz Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 2 V ~ 3.6 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2 V to 2.75 V 2 V to 3.6 V supply voltage for reliable performance. EUSART I2C SPI interface type Processor Core: PIC This product is powered by the PIC18 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 2.75 V 3.6 V Minimum supply voltage is 2 V Maximum clock frequency of 31 kHz Number of ADC Channels: 10 This product has 16 I/O connections. This product has a 3776 B data RAM size, providing ample storage for complex applications. This product features 5 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

PIC18LF24J11-I/SP Image

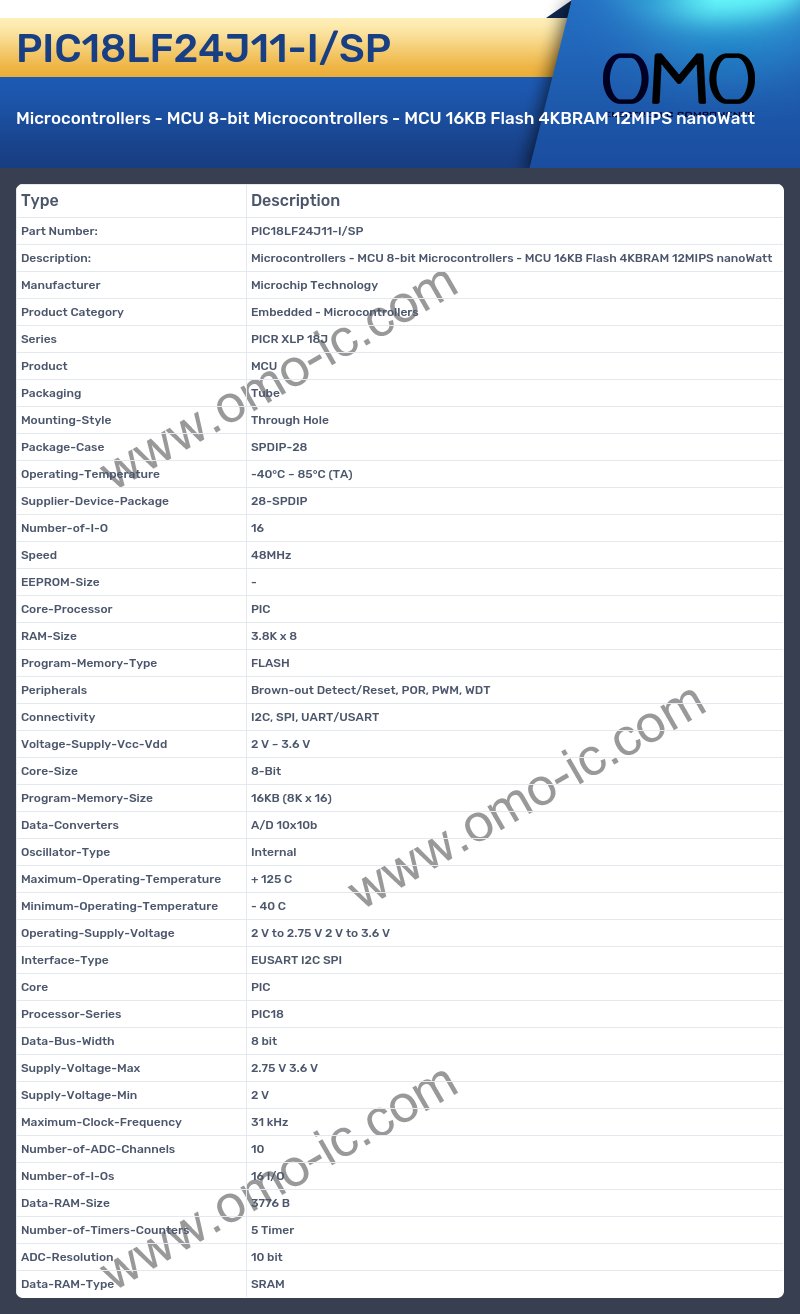

PIC18LF24J11-I/SP Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 18J
• Product MCU
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case SPDIP-28
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 28-SPDIP
• Number-of-I-O 16
• Speed 48MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 3.8K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2 V ~ 3.6 V
• Core-Size 8-Bit
• Program-Memory-Size 16KB (8K x 16)
• Data-Converters A/D 10x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 2.75 V 2 V to 3.6 V
• Interface-Type EUSART I2C SPI
• Core PIC
• Processor-Series PIC18
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 2.75 V 3.6 V
• Supply-Voltage-Min 2 V
• Maximum-Clock-Frequency 31 kHz
• Number-of-ADC-Channels 10
• Number-of-I-Os 16 I/O
• Data-RAM-Size 3776 B
• Number-of-Timers-Counters 5 Timer
• ADC-Resolution 10 bit
• Data-RAM-Type SRAM
