PIC17C756AT-16/L

PIC17C756AT-16/L Overview

Product belongs to the PICR 17C series. This product is categorized as MCU Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.171777 oz SMD/SMT Mounting-Style PLCC-68 Operational temperature range: 0°C ~ 70°C (TA) Supplier device package: 68-PLCC (24.23x24.23) This product has 50 I/O ports for versatile connectivity. Operating frequency: 16MHz Program memory type: OTP I2C, SPI, UART/USART interface Supply Voltage: 4.5 V ~ 5.5 V 8-Bit architecture External oscillator type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 3 V to 5.5 V supply voltage for reliable performance. I2C MSSP RS-232 SCI SPI USART interface type Processor Core: PIC This product is powered by the PIC17 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 3.65 V Maximum clock frequency of 33 MHz Number of ADC Channels: 12 This product has 50 I/O connections. This product has a 902 B data RAM size, providing ample storage for complex applications. The product has a 902 B data-ROM size. This product features 8 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. The EPROM Data-ROM-Type ensures non-volatile memory storage.

PIC17C756AT-16/L Image

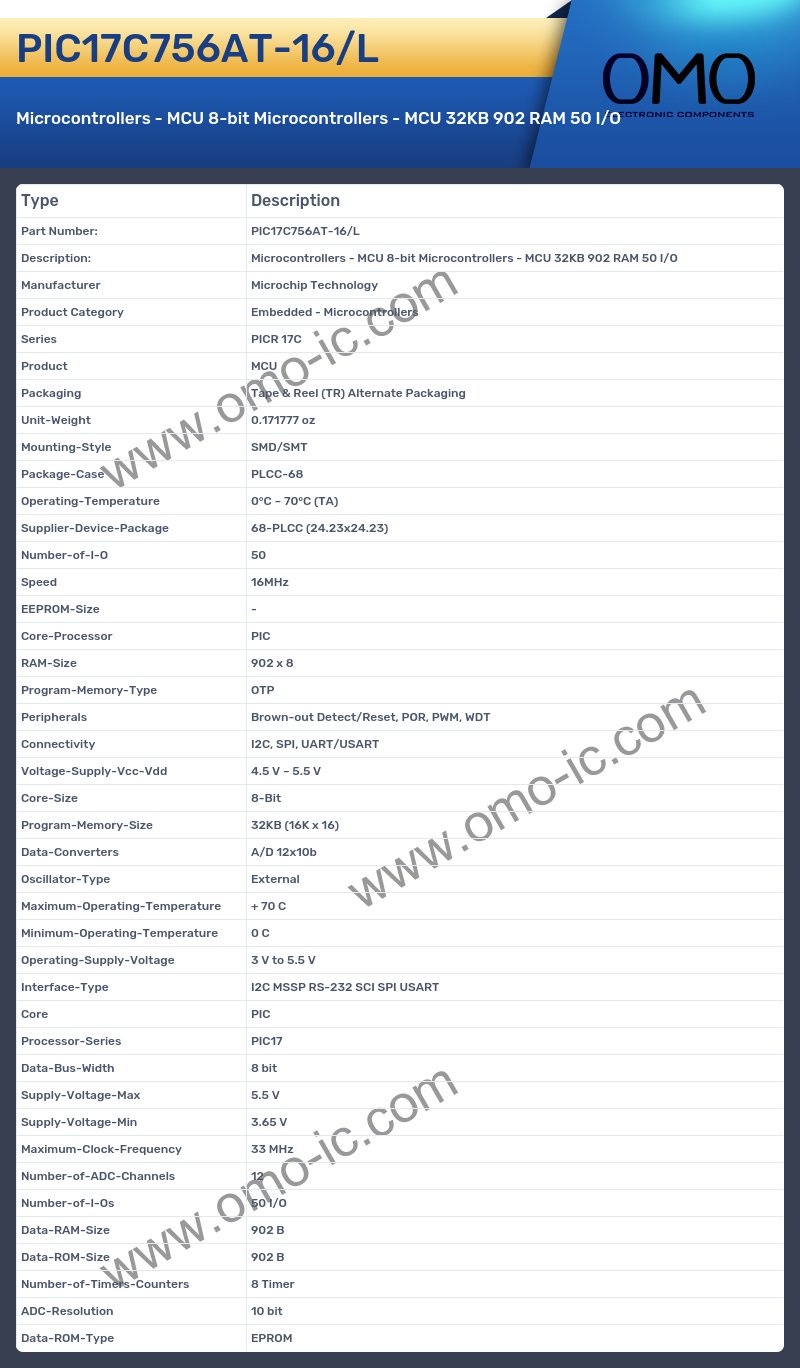

PIC17C756AT-16/L Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 17C
• Product MCU
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.171777 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-68
• Operating-Temperature 0°C ~ 70°C (TA)
• Supplier-Device-Package 68-PLCC (24.23x24.23)
• Number-of-I-O 50
• Speed 16MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 902 x 8
• Program-Memory-Type OTP
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 32KB (16K x 16)
• Data-Converters A/D 12x10b
• Oscillator-Type External
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 3 V to 5.5 V
• Interface-Type I2C MSSP RS-232 SCI SPI USART
• Core PIC
• Processor-Series PIC17
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3.65 V
• Maximum-Clock-Frequency 33 MHz
• Number-of-ADC-Channels 12
• Number-of-I-Os 50 I/O
• Data-RAM-Size 902 B
• Data-ROM-Size 902 B
• Number-of-Timers-Counters 8 Timer
• ADC-Resolution 10 bit
• Data-ROM-Type EPROM
