PIC16HV540T-04/SO

PIC16HV540T-04/SO Overview

Product belongs to the PICR 16C series. This product is categorized as MCU Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOIC-18 Operational temperature range: 0°C ~ 70°C (TA) Supplier device package: 18-SOIC This product has 12 I/O ports for versatile connectivity. Operating frequency: 4MHz Program memory type: OTP - interface Supply Voltage: 3.5 V ~ 15 V 8-Bit architecture External oscillator type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 3.5 V to 15 V supply voltage for reliable performance. Processor Core: PIC16 This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 15 V Minimum supply voltage is 3.5 V Maximum clock frequency of 4 MHz This product has 12 I/O connections. This product has a 25 B data RAM size, providing ample storage for complex applications. The product has a 512 B data-ROM size. This product features 8 Timer number of timers and counters. This product features a high-precision No ADC, ensuring accurate data conversion. The OTP EPROM Data-ROM-Type ensures non-volatile memory storage.

PIC16HV540T-04/SO Image

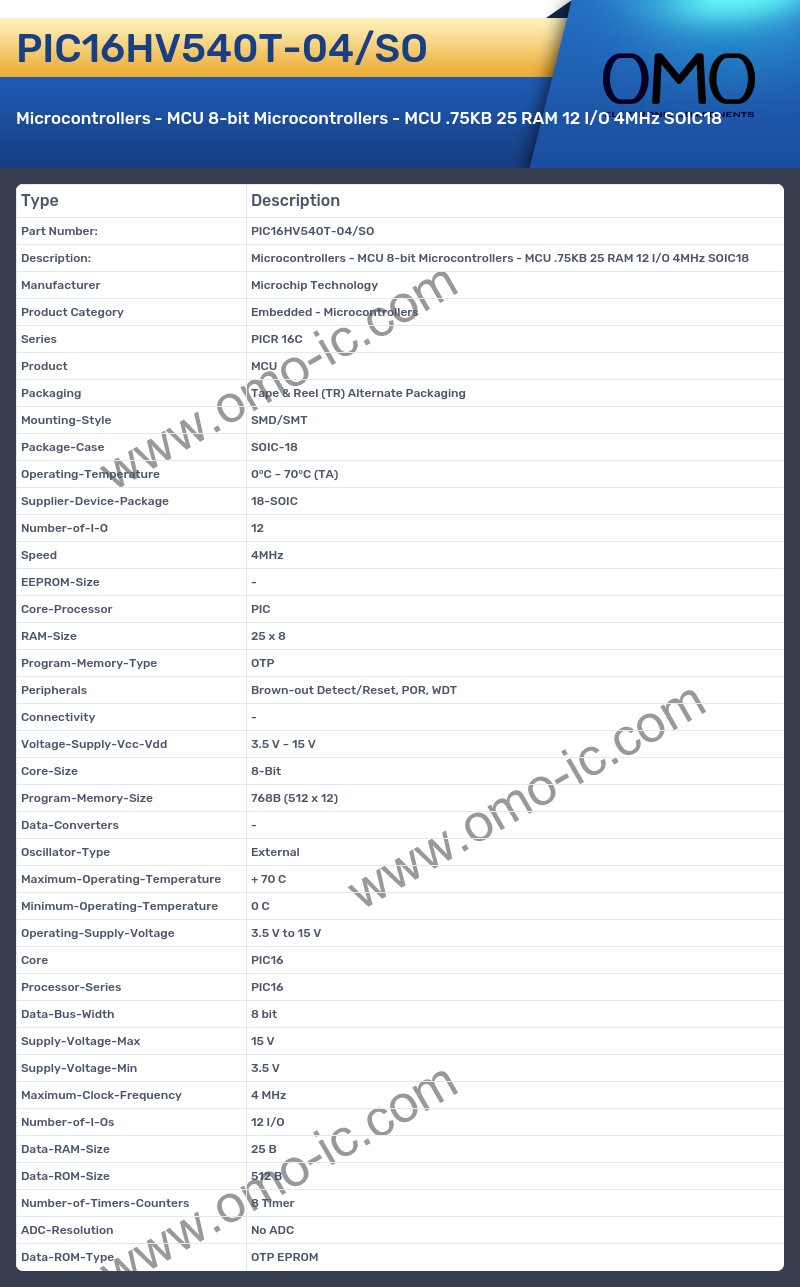

PIC16HV540T-04/SO Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16C
• Product MCU
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOIC-18
• Operating-Temperature 0°C ~ 70°C (TA)
• Supplier-Device-Package 18-SOIC
• Number-of-I-O 12
• Speed 4MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 25 x 8
• Program-Memory-Type OTP
• Peripherals Brown-out Detect/Reset, POR, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 3.5 V ~ 15 V
• Core-Size 8-Bit
• Program-Memory-Size 768B (512 x 12)
• Data-Converters -
• Oscillator-Type External
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 3.5 V to 15 V
• Core PIC16
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 3.5 V
• Maximum-Clock-Frequency 4 MHz
• Number-of-I-Os 12 I/O
• Data-RAM-Size 25 B
• Data-ROM-Size 512 B
• Number-of-Timers-Counters 8 Timer
• ADC-Resolution No ADC
• Data-ROM-Type OTP EPROM
