PIC16F1847-E/P

PIC16F1847-E/P Overview

Product belongs to the PICR XLP mTouch 16F series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.044801 oz Through Hole Mounting-Style PDIP-18 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 18-PDIP This product has 15 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, LIN, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: PIC16 This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V Maximum clock frequency of 32 MHz Number of ADC Channels: 12 This product has 15 I/O connections. This product has a 1024 B data RAM size, providing ample storage for complex applications. This product features 4 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes EEPROM, providing fast and efficient data storage.

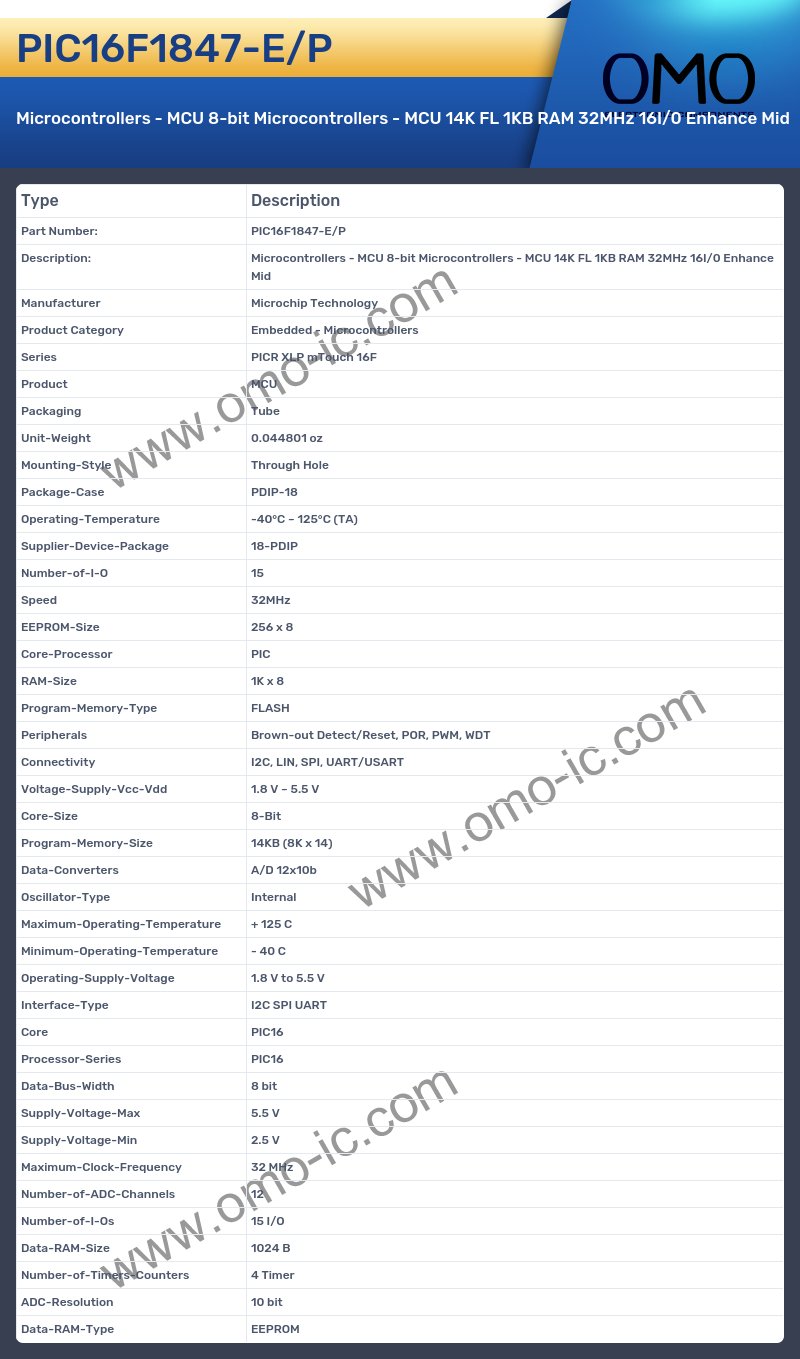

PIC16F1847-E/P Image

PIC16F1847-E/P Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP mTouch 16F
• Product MCU
• Packaging Tube
• Unit-Weight 0.044801 oz
• Mounting-Style Through Hole
• Package-Case PDIP-18
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 18-PDIP
• Number-of-I-O 15
• Speed 32MHz
• EEPROM-Size 256 x 8
• Core-Processor PIC
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 14KB (8K x 14)
• Data-Converters A/D 12x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Interface-Type I2C SPI UART
• Core PIC16
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.5 V
• Maximum-Clock-Frequency 32 MHz
• Number-of-ADC-Channels 12
• Number-of-I-Os 15 I/O
• Data-RAM-Size 1024 B
• Number-of-Timers-Counters 4 Timer
• ADC-Resolution 10 bit
• Data-RAM-Type EEPROM
