PIC16F18313-E/MF

PIC16F18313-E/MF Overview

Product belongs to the PICR XLP 16F series. Tube is the packaging method for this product 8-VDFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 8-DFN (3x3) This product has 6 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, LIN, SPI, UART/USART interface Supply Voltage: 2.3 V ~ 5.5 V 8-Bit architecture Internal oscillator type Processor Core: PIC16

PIC16F18313-E/MF Image

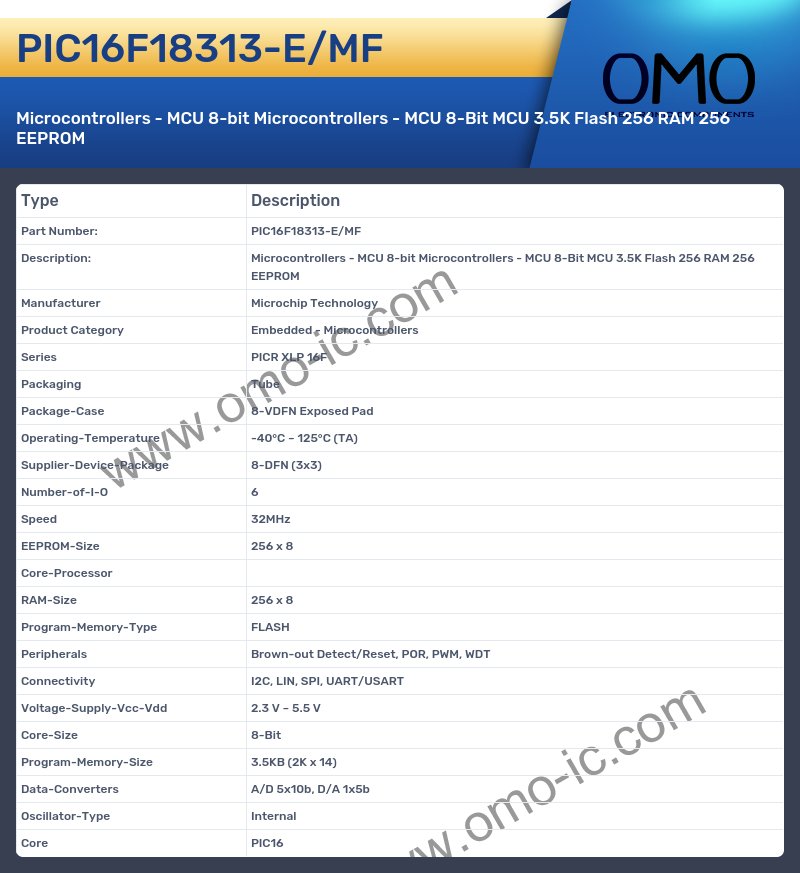

PIC16F18313-E/MF Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 16F
• Packaging Tube
• Package-Case 8-VDFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 8-DFN (3x3)
• Number-of-I-O 6
• Speed 32MHz
• EEPROM-Size 256 x 8
• Core-Processor
• RAM-Size 256 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.3 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 3.5KB (2K x 14)
• Data-Converters A/D 5x10b, D/A 1x5b
• Oscillator-Type Internal
• Core PIC16
