PIC14000-20/SO

PIC14000-20/SO Overview

Product belongs to the PICR 14 series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.078125 oz SMD/SMT Mounting-Style SOIC-28 Operational temperature range: 0°C ~ 70°C (TA) Supplier device package: 28-SOIC This product has 20 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: OTP I2C interface Supply Voltage: 2.7 V ~ 6 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 2.7 V to 6 V supply voltage for reliable performance. SPI UART interface type Processor Core: PIC This product is powered by the PIC14 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Maximum clock frequency of 20 MHz Number of ADC Channels: 8 This product has 22 I/O connections. This product has a 192 B data RAM size, providing ample storage for complex applications. This product features 1 Timer number of timers and counters. This product includes Watchdog Timer This product features a high-precision 16 bit, ensuring accurate data conversion. The EPROM Data-ROM-Type ensures non-volatile memory storage.

PIC14000-20/SO Image

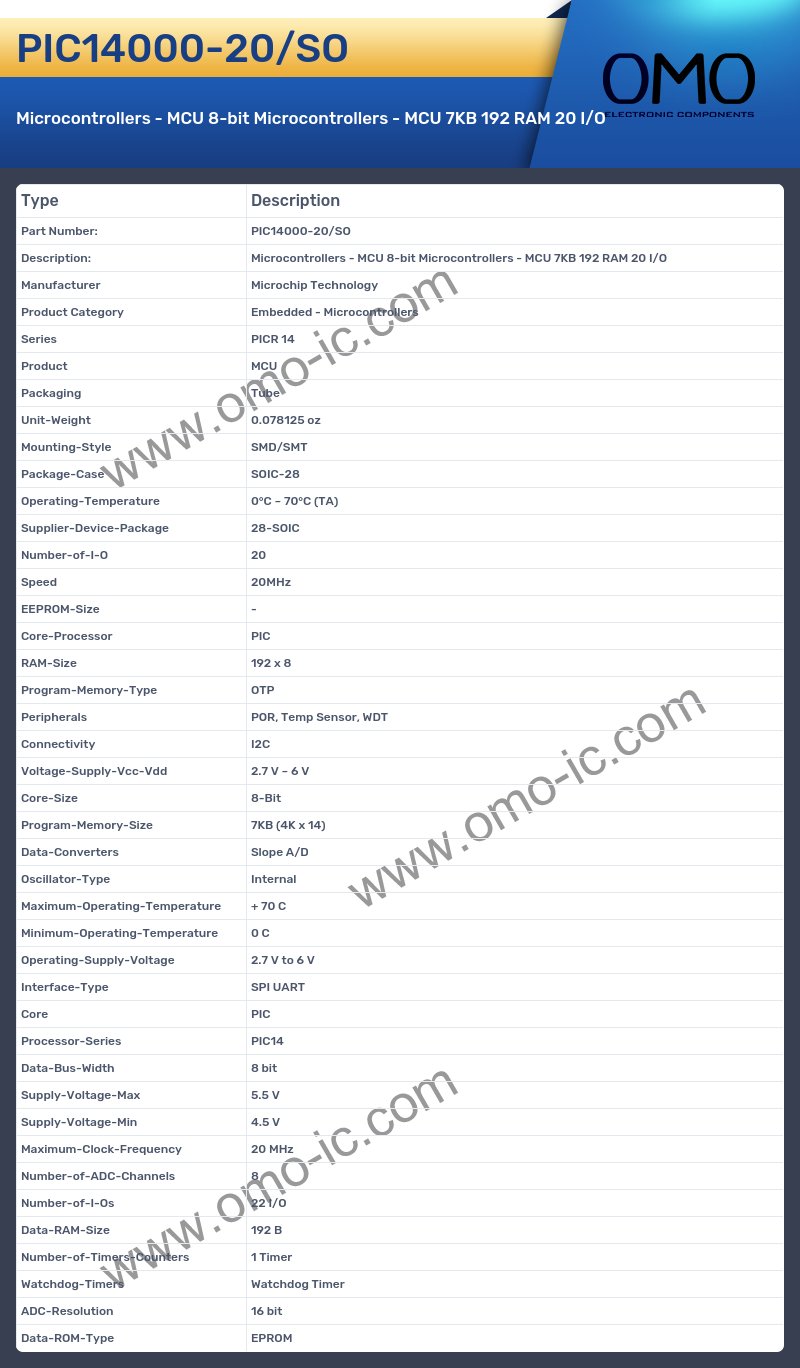

PIC14000-20/SO Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 14
• Product MCU
• Packaging Tube
• Unit-Weight 0.078125 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Operating-Temperature 0°C ~ 70°C (TA)
• Supplier-Device-Package 28-SOIC
• Number-of-I-O 20
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 192 x 8
• Program-Memory-Type OTP
• Peripherals POR, Temp Sensor, WDT
• Connectivity I2C
• Voltage-Supply-Vcc-Vdd 2.7 V ~ 6 V
• Core-Size 8-Bit
• Program-Memory-Size 7KB (4K x 14)
• Data-Converters Slope A/D
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 2.7 V to 6 V
• Interface-Type SPI UART
• Core PIC
• Processor-Series PIC14
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Maximum-Clock-Frequency 20 MHz
• Number-of-ADC-Channels 8
• Number-of-I-Os 22 I/O
• Data-RAM-Size 192 B
• Number-of-Timers-Counters 1 Timer
• Watchdog-Timers Watchdog Timer
• ADC-Resolution 16 bit
• Data-ROM-Type EPROM
