MSP430FR5948IRHAT

MSP430FR5948IRHAT Overview

Product belongs to the MSP430 FRAM series. This product is categorized as MCU Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.003668 oz SMD/SMT Mounting-Style VQFN-40 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 40-VQFN (6x6) This product has 33 I/O ports for versatile connectivity. Operating frequency: 16MHz Program memory type: FRAM I2C, IrDA, SCI, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: MSP430 The 16 bit. Maximum supply voltage of 3.6 V Minimum supply voltage is 1.8 V Maximum clock frequency of 16 MHz Analog supply voltage: 3.6 V Number of ADC Channels: 14 Channel This product has 33 I/O connections. This product has a 2 kB data RAM size, providing ample storage for complex applications. This product features 5 x 16 bit number of timers and counters. This product includes Watchdog Timer This product features a high-precision 12 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

MSP430FR5948IRHAT Image

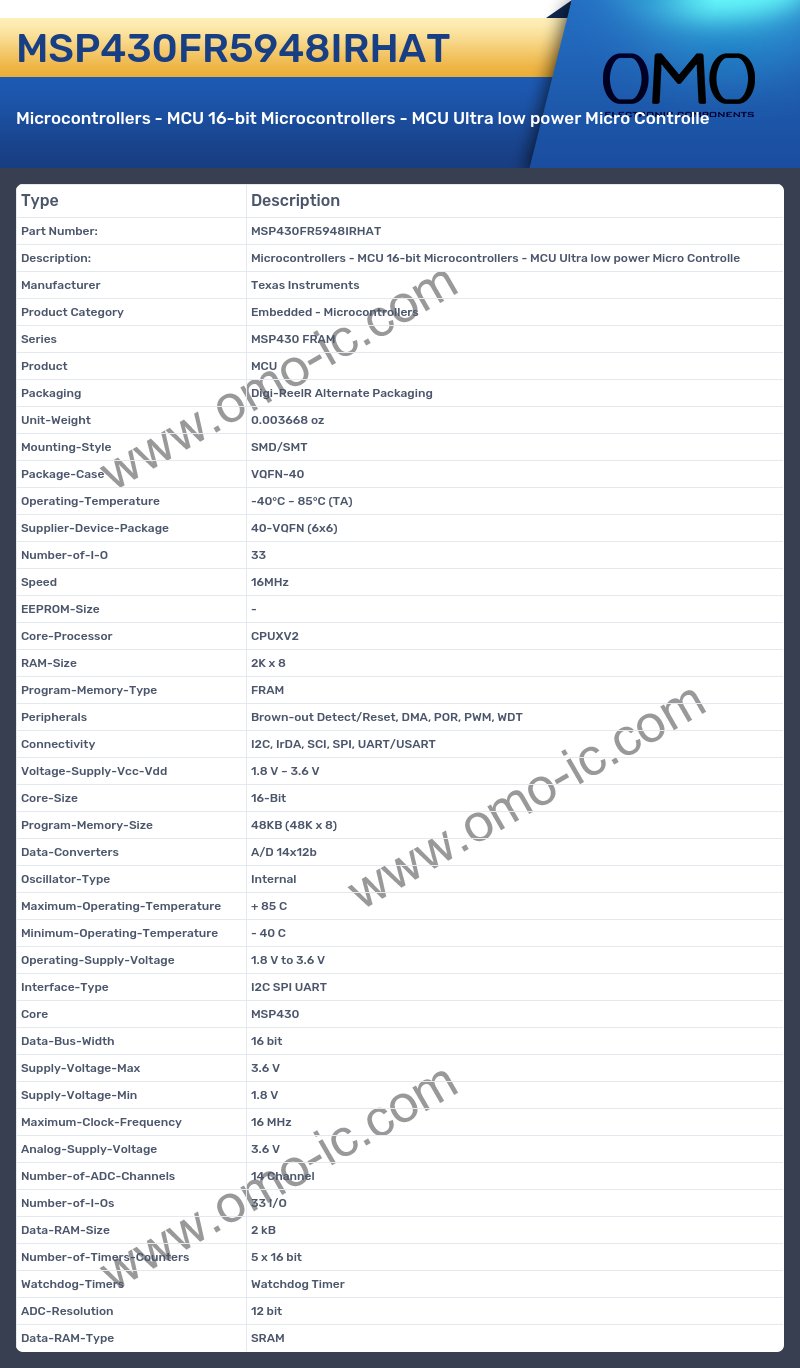

MSP430FR5948IRHAT Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series MSP430 FRAM
• Product MCU
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.003668 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-40
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 40-VQFN (6x6)
• Number-of-I-O 33
• Speed 16MHz
• EEPROM-Size -
• Core-Processor CPUXV2
• RAM-Size 2K x 8
• Program-Memory-Type FRAM
• Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
• Connectivity I2C, IrDA, SCI, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 48KB (48K x 8)
• Data-Converters A/D 14x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type I2C SPI UART
• Core MSP430
• Data-Bus-Width 16 bit
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.8 V
• Maximum-Clock-Frequency 16 MHz
• Analog-Supply-Voltage 3.6 V
• Number-of-ADC-Channels 14 Channel
• Number-of-I-Os 33 I/O
• Data-RAM-Size 2 kB
• Number-of-Timers-Counters 5 x 16 bit
• Watchdog-Timers Watchdog Timer
• ADC-Resolution 12 bit
• Data-RAM-Type SRAM
