MSP430F5659IZQWT

MSP430F5659IZQWT Overview

Product belongs to the MSP430F5xx series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Trade name: MSP430. BGA-113 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 113-BGA Microstar Junior (7x7) This product has 74 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH I2C, IrDA, SCI, SPI, UART/USART, USB interface Supply Voltage: 1.8 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: MSP430 This product is powered by the MSP430F565x Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 20 MHz This product has 74 I/O connections. This product has a 64 kB data RAM size, providing ample storage for complex applications. This product features 4 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage.

MSP430F5659IZQWT Image

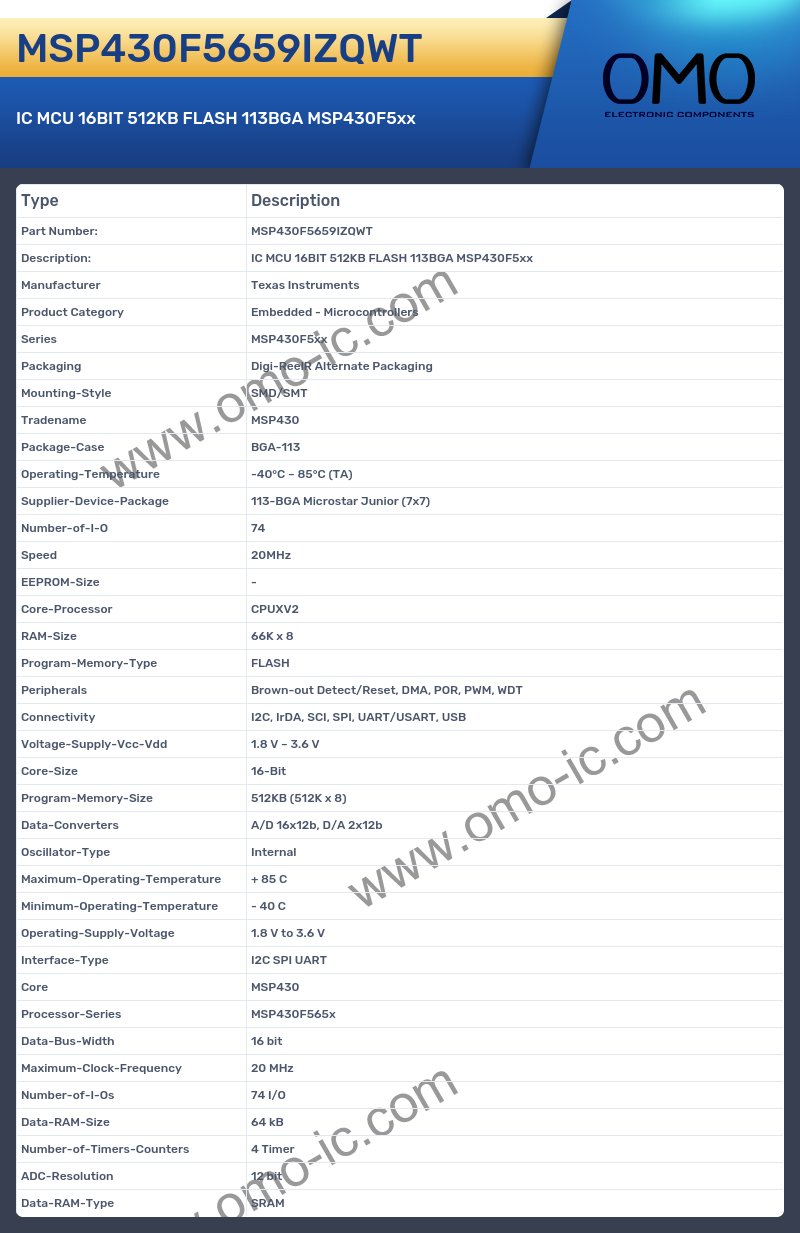

MSP430F5659IZQWT Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series MSP430F5xx
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Tradename MSP430
• Package-Case BGA-113
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 113-BGA Microstar Junior (7x7)
• Number-of-I-O 74
• Speed 20MHz
• EEPROM-Size -
• Core-Processor CPUXV2
• RAM-Size 66K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
• Connectivity I2C, IrDA, SCI, SPI, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 512KB (512K x 8)
• Data-Converters A/D 16x12b, D/A 2x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type I2C SPI UART
• Core MSP430
• Processor-Series MSP430F565x
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 20 MHz
• Number-of-I-Os 74 I/O
• Data-RAM-Size 64 kB
• Number-of-Timers-Counters 4 Timer
• ADC-Resolution 12 bit
• Data-RAM-Type SRAM
