MSP430F5521IPN

MSP430F5521IPN Overview

Product belongs to the MSP430F5xx series. This product is categorized as MCU Tray Alternate Packaging is the packaging method for this product Weight of 0.022575 oz SMD/SMT Mounting-Style Trade name: MSP430. LQFP-80 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 80-LQFP (12x12) This product has 63 I/O ports for versatile connectivity. Operating frequency: 25MHz Program memory type: FLASH I2C, IrDA, LIN, SCI, SPI, UART/USART, USB interface Supply Voltage: 1.8 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. I2C IrDA LIN SCI SPI UART/USART USB interface type Processor Core: MSP430 This product is powered by the Series 5 Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 25 MHz Number of ADC Channels: 16 This product has 63 I/O connections. This product has a 8 kB data RAM size, providing ample storage for complex applications. This product features 4 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion.

MSP430F5521IPN Image

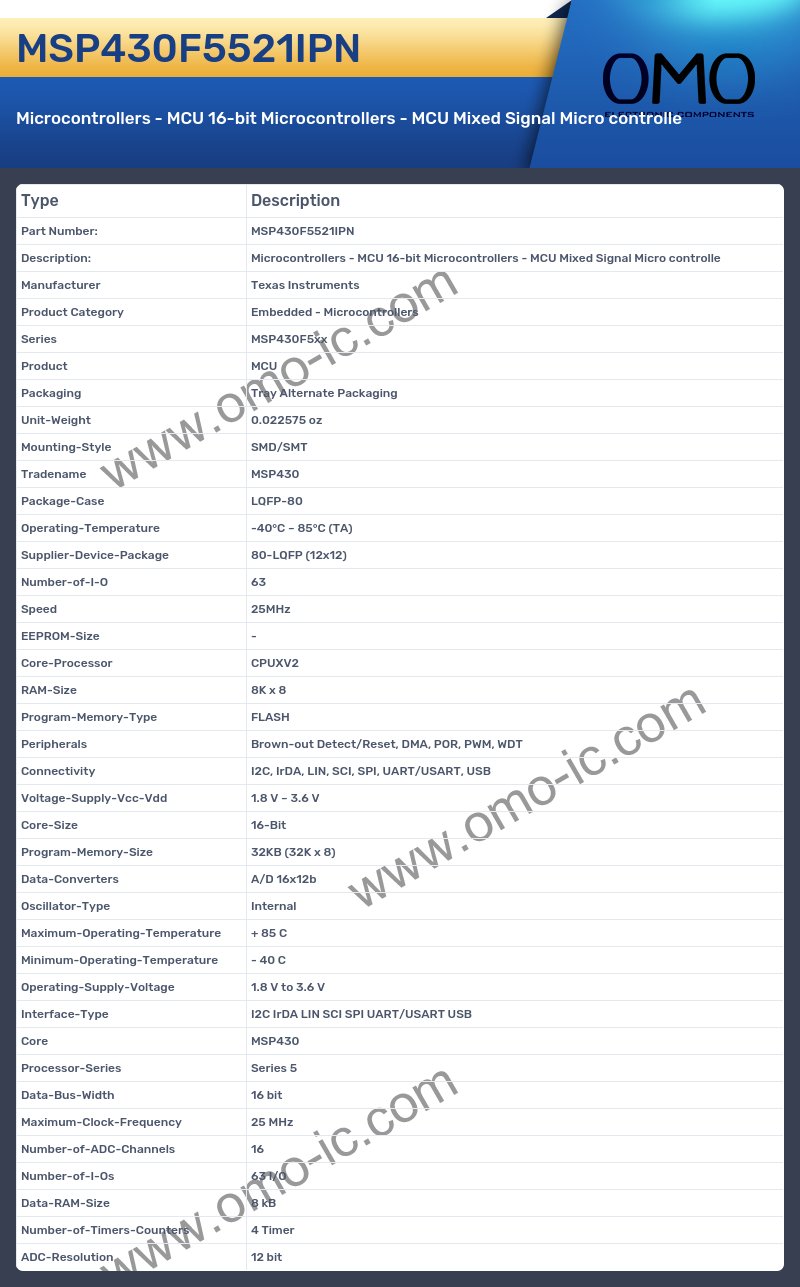

MSP430F5521IPN Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series MSP430F5xx
• Product MCU
• Packaging Tray Alternate Packaging
• Unit-Weight 0.022575 oz
• Mounting-Style SMD/SMT
• Tradename MSP430
• Package-Case LQFP-80
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 80-LQFP (12x12)
• Number-of-I-O 63
• Speed 25MHz
• EEPROM-Size -
• Core-Processor CPUXV2
• RAM-Size 8K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SCI, SPI, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 32KB (32K x 8)
• Data-Converters A/D 16x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type I2C IrDA LIN SCI SPI UART/USART USB
• Core MSP430
• Processor-Series Series 5
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 25 MHz
• Number-of-ADC-Channels 16
• Number-of-I-Os 63 I/O
• Data-RAM-Size 8 kB
• Number-of-Timers-Counters 4 Timer
• ADC-Resolution 12 bit
