MSP430F123IDWR

MSP430F123IDWR Overview

Product belongs to the MSP430x1xx series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style Trade name: MSP430. SOIC-28 Wide Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 28-SOIC This product has 22 I/O ports for versatile connectivity. Operating frequency: 8MHz Program memory type: FLASH SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. 1 USART SPI UART interface type Processor Core: MSP430 This product is powered by the 1 Series Processor-Series, providing high performance and efficiency. This product is also known as MSP430A012IDWR and can be referred to by either part number. The 16 bit. Maximum clock frequency of 8 MHz This product has 22 I/O connections. This product has a 256 B data RAM size, providing ample storage for complex applications. The product has a 256 B data-ROM size. This product features 1 Timer number of timers and counters. The Flash Data-ROM-Type ensures non-volatile memory storage.

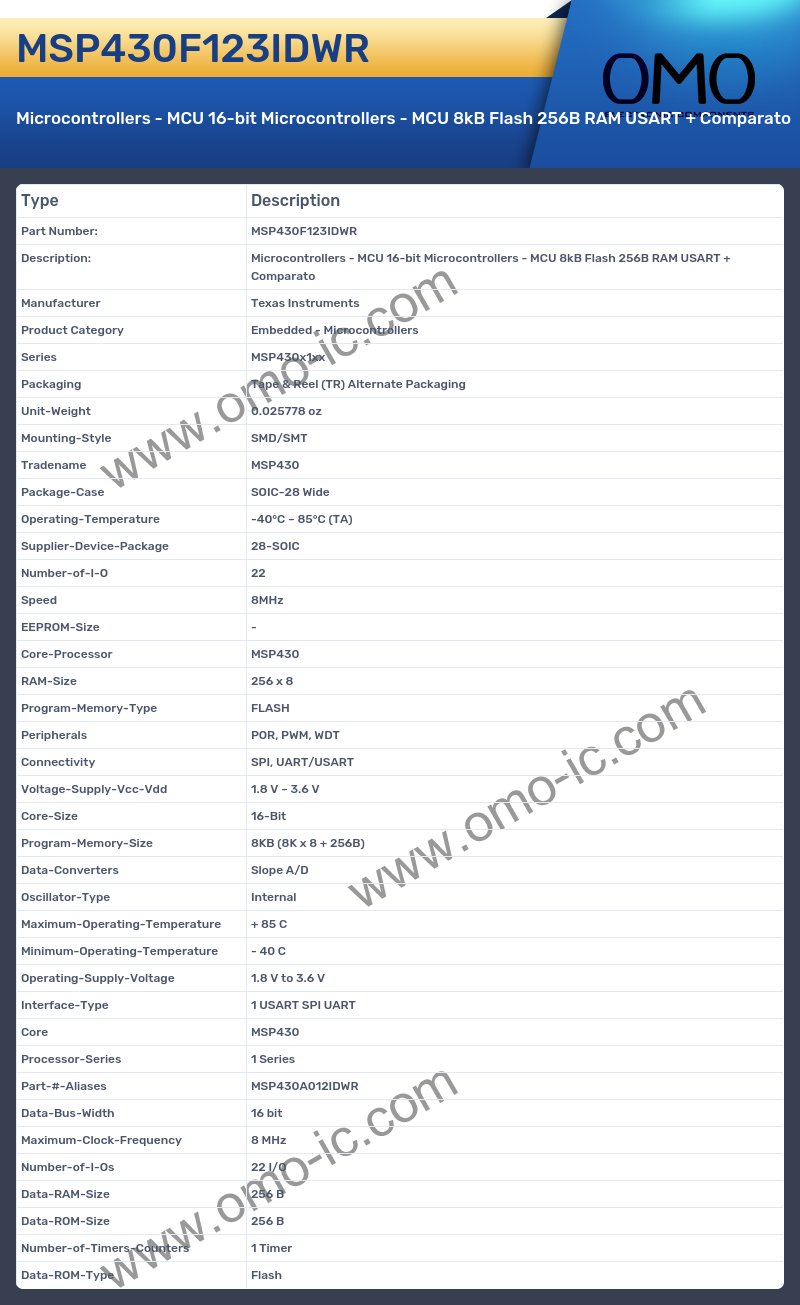

MSP430F123IDWR Image

MSP430F123IDWR Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series MSP430x1xx
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Tradename MSP430
• Package-Case SOIC-28 Wide
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 28-SOIC
• Number-of-I-O 22
• Speed 8MHz
• EEPROM-Size -
• Core-Processor MSP430
• RAM-Size 256 x 8
• Program-Memory-Type FLASH
• Peripherals POR, PWM, WDT
• Connectivity SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 8KB (8K x 8 + 256B)
• Data-Converters Slope A/D
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type 1 USART SPI UART
• Core MSP430
• Processor-Series 1 Series
• Part-#-Aliases MSP430A012IDWR
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 8 MHz
• Number-of-I-Os 22 I/O
• Data-RAM-Size 256 B
• Data-ROM-Size 256 B
• Number-of-Timers-Counters 1 Timer
• Data-ROM-Type Flash
