MD1802FX

MD1802FX Overview

Product belongs to the 1000V Transistors series. Tube is the packaging method for this product Through Hole Mounting-Style ISOWATT-218FX-3 Configuration Single Power-off control: 57000 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 700 V The transistor polarity is NPN. The 9 V voltage rating is 40 V. 9 V rating of 5 V Max DC collector current: 10 A This product is capable of handling a 10 A continuous collector current. Minimum hfe for DC collector-base gain is 5.5 at 5 A at 5 V. 8.5 of 605.

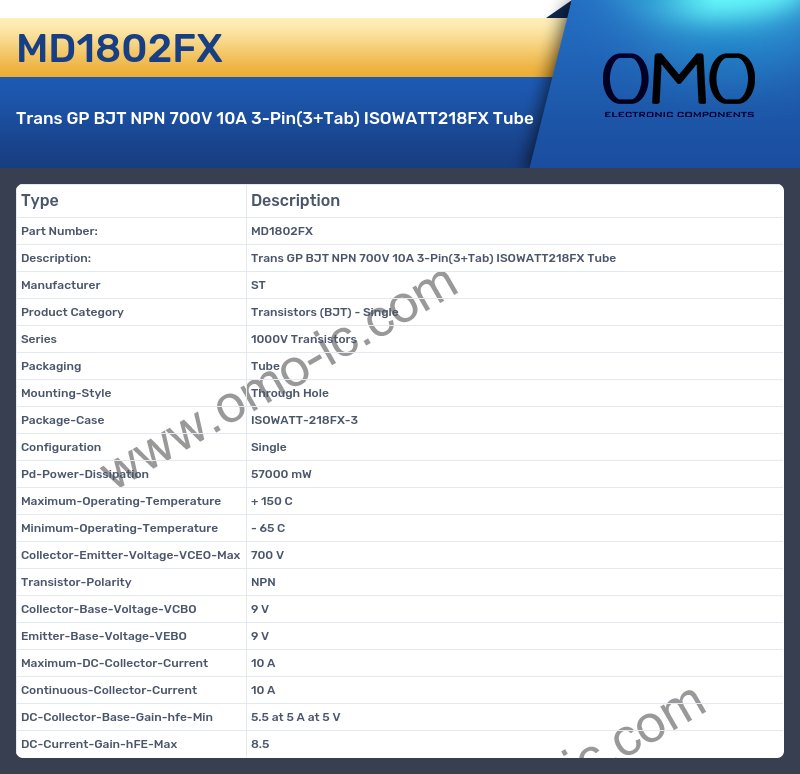

MD1802FX Image

MD1802FX Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series 1000V Transistors
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case ISOWATT-218FX-3
• Configuration Single
• Pd-Power-Dissipation 57000 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 700 V
• Transistor-Polarity NPN
• Collector-Base-Voltage-VCBO 9 V
• Emitter-Base-Voltage-VEBO 9 V
• Maximum-DC-Collector-Current 10 A
• Continuous-Collector-Current 10 A
• DC-Collector-Base-Gain-hfe-Min 5.5 at 5 A at 5 V
• DC-Current-Gain-hFE-Max 8.5
