MCP4242T-104E/MF

MCP4242T-104E/MF Overview

Product belongs to the WiperLock series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-10 EP Operational temperature range: -40°C ~ 125°C Interface: SPI Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 10-DFN (3x3) 2 is 8. Taper: Linear Configuration Rheostat 129 taps Resistance-Ohms: 100k Non-Volatile memory type Tolerance of - The 150 ppm/°C. 75 Ohms Resistance: 100 kOhms Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.5 V 3.3 V 5 V supply voltage for reliable performance. 550 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V Dual number of POTs The 128. Non Volatile wiper memory This product features a Serial (4-Wire SPI).

MCP4242T-104E/MF Image

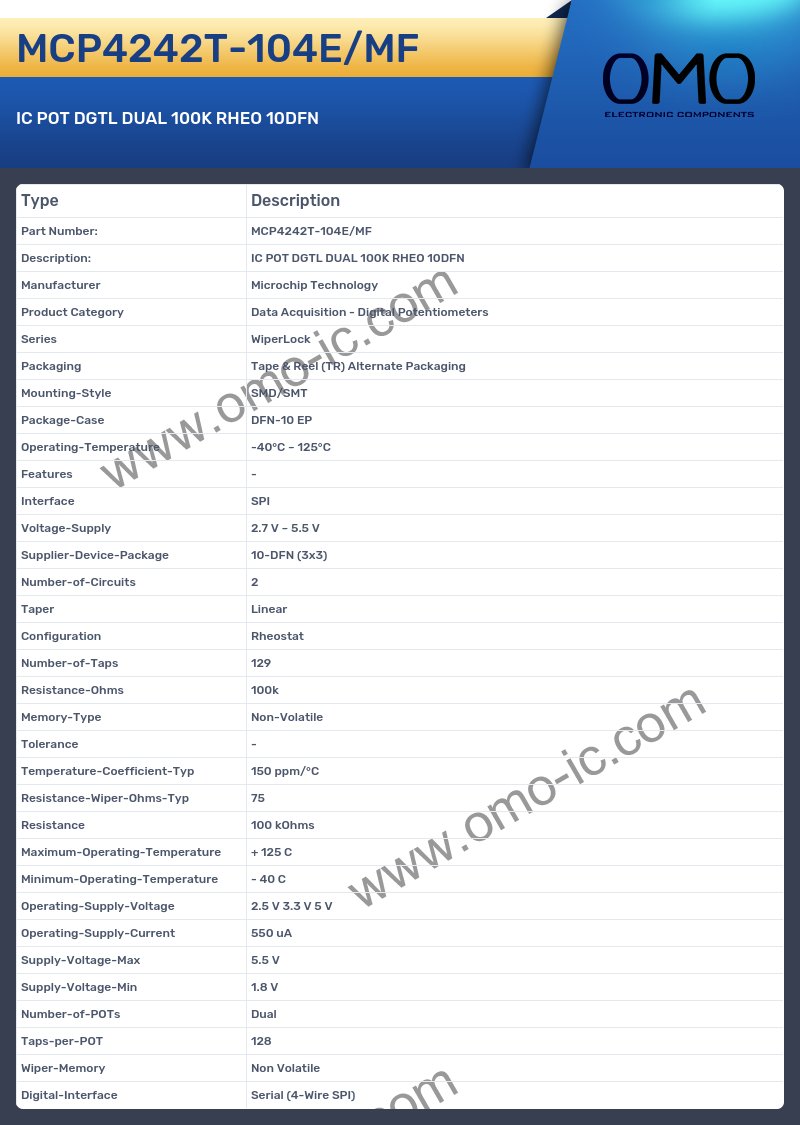

MCP4242T-104E/MF Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Digital Potentiometers
• Series WiperLock
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DFN-10 EP
• Operating-Temperature -40°C ~ 125°C
• Features -
• Interface SPI
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 10-DFN (3x3)
• Number-of-Circuits 2
• Taper Linear
• Configuration Rheostat
• Number-of-Taps 129
• Resistance-Ohms 100k
• Memory-Type Non-Volatile
• Tolerance -
• Temperature-Coefficient-Typ 150 ppm/°C
• Resistance-Wiper-Ohms-Typ 75
• Resistance 100 kOhms
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V 3.3 V 5 V
• Operating-Supply-Current 550 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• Number-of-POTs Dual
• Taps-per-POT 128
• Wiper-Memory Non Volatile
• Digital-Interface Serial (4-Wire SPI)
