MCP4021T-103E/MC

MCP4021T-103E/MC Overview

Product belongs to the - series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001344 oz SMD/SMT Mounting-Style DFN-8 EP Operational temperature range: -40°C ~ 125°C Interface: Up/Down (U/D, CS) Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 8-DFN (2x3) 1 is 8. Taper: Linear Configuration Potentiometer 64 taps Resistance-Ohms: 10k Non-Volatile memory type Tolerance of - The 150 ppm/°C. 75 Ohms Resistance: 10 kOhms Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 3.3 V 5 V supply voltage for reliable performance. 45 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Single number of POTs The 64. Non Volatile wiper memory This product features a Serial (2-Wire).

MCP4021T-103E/MC Image

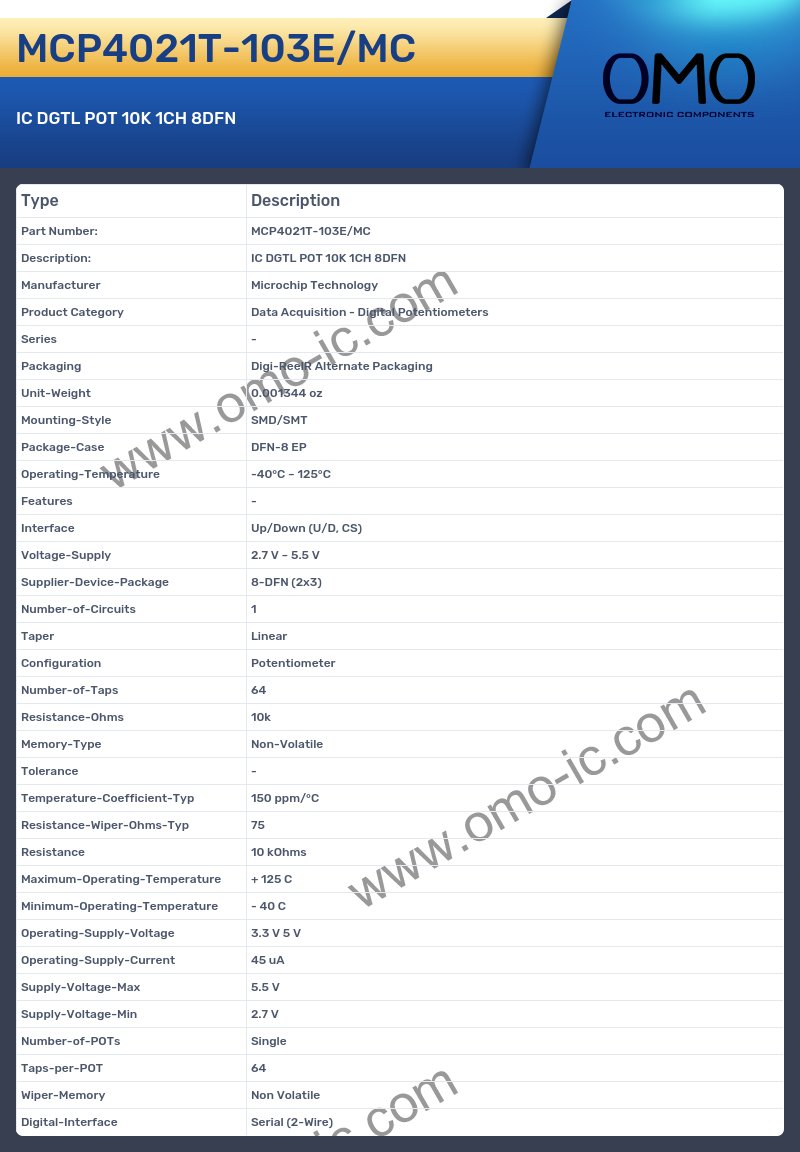

MCP4021T-103E/MC Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Digital Potentiometers
• Series -
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001344 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-8 EP
• Operating-Temperature -40°C ~ 125°C
• Features -
• Interface Up/Down (U/D, CS)
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 8-DFN (2x3)
• Number-of-Circuits 1
• Taper Linear
• Configuration Potentiometer
• Number-of-Taps 64
• Resistance-Ohms 10k
• Memory-Type Non-Volatile
• Tolerance -
• Temperature-Coefficient-Typ 150 ppm/°C
• Resistance-Wiper-Ohms-Typ 75
• Resistance 10 kOhms
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V 5 V
• Operating-Supply-Current 45 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-POTs Single
• Taps-per-POT 64
• Wiper-Memory Non Volatile
• Digital-Interface Serial (2-Wire)
