MCP37D20T-200I/TL

MCP37D20T-200I/TL Overview

Product belongs to the - series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tape & Reel (TR) is the packaging method for this product SMD/SMT Mounting-Style VTLA-124 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: CMOS DDR LVDS Number of channels: 1 Channel Supplier device package: 124-VTLA (9x9) This product's 200M. Data-Interface: LVDS - Parallel, Parallel 14 bits The Voltage-Supply-Analog is 1.2V, 1.8V. The Voltage Supply Digital for this product is 1.2V, 1.8V. Configuration S/H-ADC The architecture of this product is Pipelined . Internal is the reference type. 1 units Power-off control: Shutdown Power-off control: 348 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 67.2 dB Number-of-Converters: 1 Converter 200 MS/s Sampling Rate Analog supply voltage: 1.2 V 1.8 V Digital Supply Voltage: 1.2 V 1.8 V Integral Nonlinearity: 1.5 LSB Reference voltage is 800 mV . Differential nonlinearity: 0.4 LSB ENOB is 10.9 bit SFDR: 80 dB Total Harmonic Distortion: 81 dB Full power bandwidth of 650 MHz

MCP37D20T-200I/TL Image

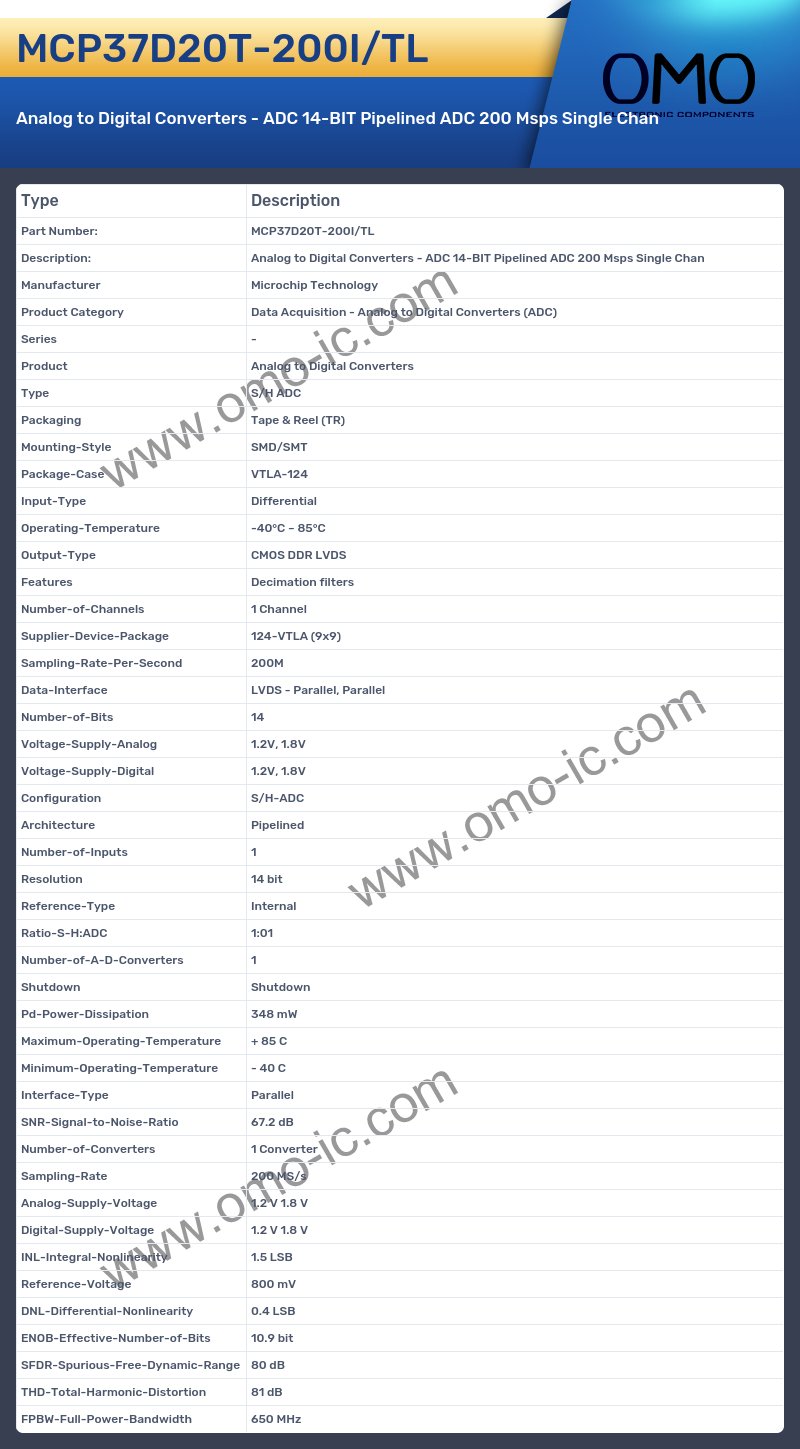

MCP37D20T-200I/TL Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series -
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tape & Reel (TR)
• Mounting-Style SMD/SMT
• Package-Case VTLA-124
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type CMOS DDR LVDS
• Features Decimation filters
• Number-of-Channels 1 Channel
• Supplier-Device-Package 124-VTLA (9x9)
• Sampling-Rate-Per-Second 200M
• Data-Interface LVDS - Parallel, Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 1.2V, 1.8V
• Voltage-Supply-Digital 1.2V, 1.8V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 14 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Shutdown Shutdown
• Pd-Power-Dissipation 348 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 67.2 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 200 MS/s
• Analog-Supply-Voltage 1.2 V 1.8 V
• Digital-Supply-Voltage 1.2 V 1.8 V
• INL-Integral-Nonlinearity 1.5 LSB
• Reference-Voltage 800 mV
• DNL-Differential-Nonlinearity 0.4 LSB
• ENOB-Effective-Number-of-Bits 10.9 bit
• SFDR-Spurious-Free-Dynamic-Range 80 dB
• THD-Total-Harmonic-Distortion 81 dB
• FPBW-Full-Power-Bandwidth 650 MHz
