MCP2561-H/MF

MCP2561-H/MF Overview

Product belongs to the - series. This product is categorized as CAN Transceivers Type: Transceiver Tube Alternate Packaging is the packaging method for this product Weight of 0.001319 oz SMD/SMT Mounting-Style DFN-8 Operational temperature range: -40°C ~ 150°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 8-DFN (3x3) This product has a 2016/1/1 number of drivers and receivers. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. 70 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V 125 ns is 23 microseconds.

MCP2561-H/MF Image

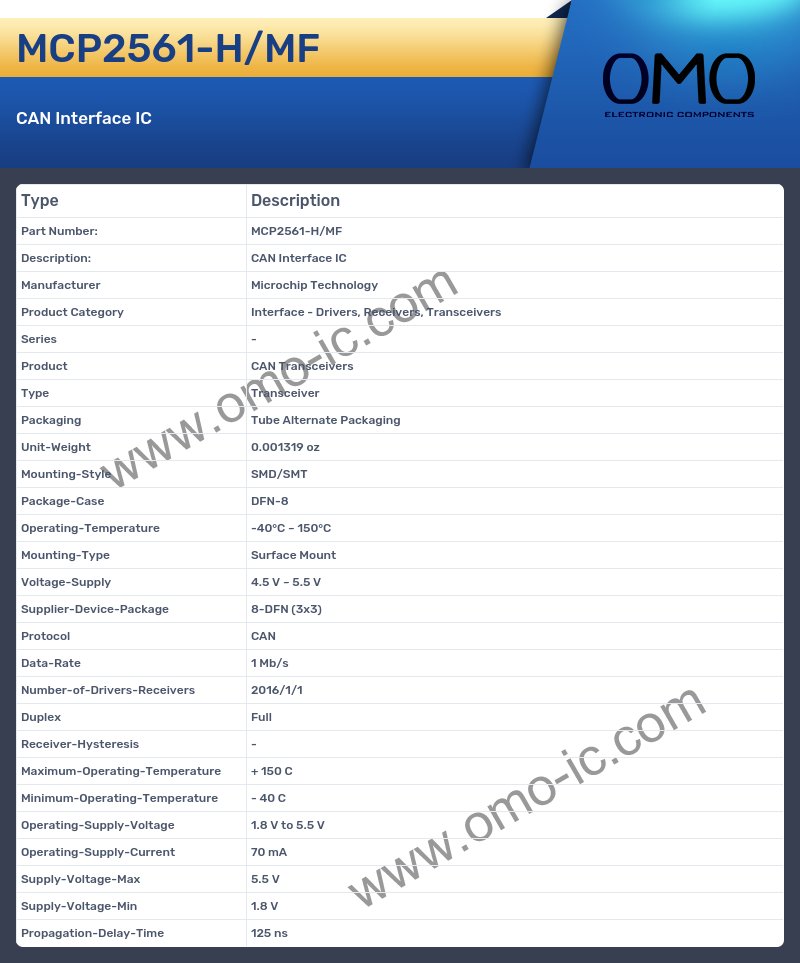

MCP2561-H/MF Specifications

• Manufacturer Microchip Technology
• Product Category Interface - Drivers, Receivers, Transceivers
• Series -
• Product CAN Transceivers
• Type Transceiver
• Packaging Tube Alternate Packaging
• Unit-Weight 0.001319 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-8
• Operating-Temperature -40°C ~ 150°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 8-DFN (3x3)
• Protocol CAN
• Data-Rate 1 Mb/s
• Number-of-Drivers-Receivers 2016/1/1
• Duplex Full
• Receiver-Hysteresis -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Operating-Supply-Current 70 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• Propagation-Delay-Time 125 ns
