MCP1825S-5002E/AB

MCP1825S-5002E/AB Overview

Product belongs to the - series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-220-3 Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 5 V Maximum Input Voltage: 6 V Output current: 500 mA The product's + 2.1 V is 5.1 V. Load regulation is 0.5 %. The voltage regulation accuracy of this product is 0.5 %. Input bias current of 120 uA This product has a 220 uA of 7 mA, making it ideal for low-power applications. The 0.21 V at 500 mA. The maximum 350 mV at 500 mA is 360 mV. This product's 0.05 % / V is 0.01 %/V.

MCP1825S-5002E/AB Image

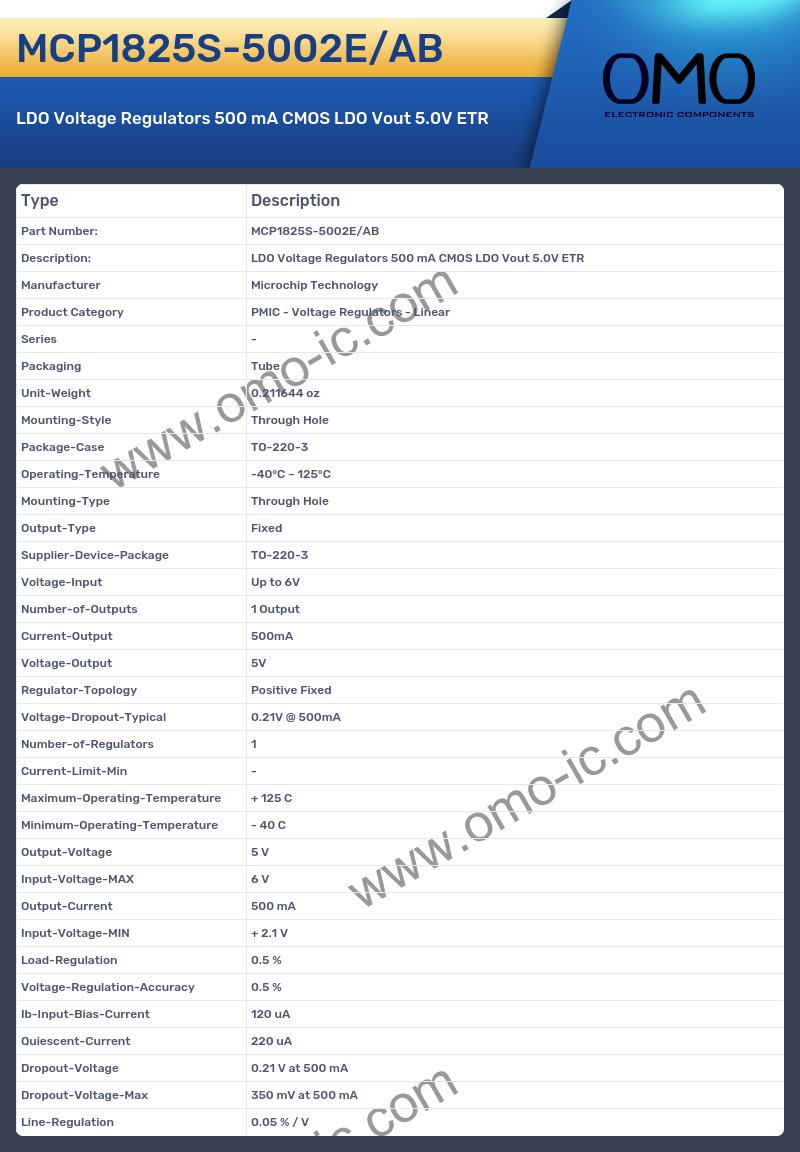

MCP1825S-5002E/AB Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-220-3
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.21V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Input-Voltage-MAX 6 V
• Output-Current 500 mA
• Input-Voltage-MIN + 2.1 V
• Load-Regulation 0.5 %
• Voltage-Regulation-Accuracy 0.5 %
• Ib-Input-Bias-Current 120 uA
• Quiescent-Current 220 uA
• Dropout-Voltage 0.21 V at 500 mA
• Dropout-Voltage-Max 350 mV at 500 mA
• Line-Regulation 0.05 % / V
