MCP1824T-2502E/OT

MCP1824T-2502E/OT Overview

Product belongs to the - series. This product is categorized as LDO Voltage Regulator Type: Low Quiescent Current Low Voltage Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SOT-23-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-5 Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 2.5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 254 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.5 V Maximum Input Voltage: 6 V Output current: 300 mA The product's 2.1 V is 5.1 V. Load regulation is 0.5 %. The voltage regulation accuracy of this product is 2.5 %. Input bias current of 120 uA This product has a 220 uA of 7 mA, making it ideal for low-power applications. The 0.2 V at 300 mA. The maximum 320 mV is 360 mV. This product's 0.05 % / V is 0.01 %/V. The product's 55 dB is -20 dB.

MCP1824T-2502E/OT Image

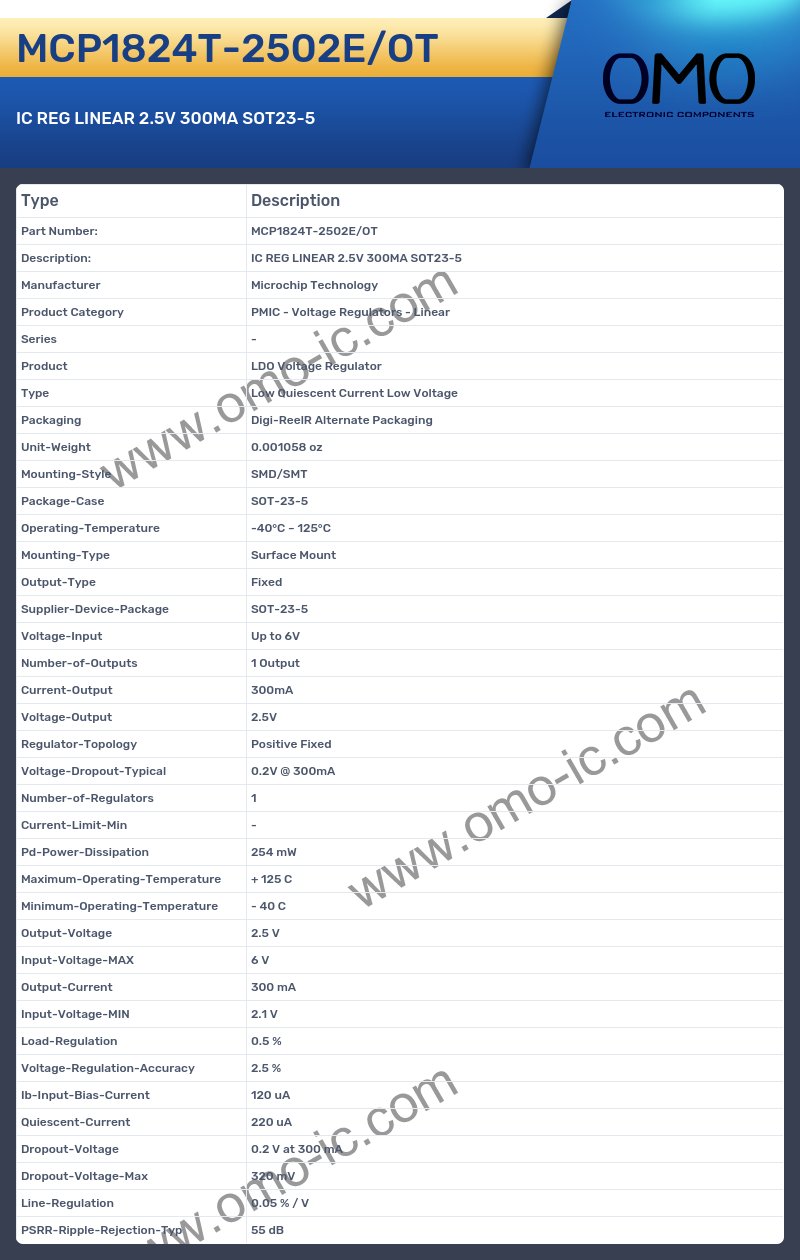

MCP1824T-2502E/OT Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Voltage Regulator
• Type Low Quiescent Current Low Voltage
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-5
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 300mA
• Voltage-Output 2.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.2V @ 300mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 254 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.5 V
• Input-Voltage-MAX 6 V
• Output-Current 300 mA
• Input-Voltage-MIN 2.1 V
• Load-Regulation 0.5 %
• Voltage-Regulation-Accuracy 2.5 %
• Ib-Input-Bias-Current 120 uA
• Quiescent-Current 220 uA
• Dropout-Voltage 0.2 V at 300 mA
• Dropout-Voltage-Max 320 mV
• Line-Regulation 0.05 % / V
• PSRR-Ripple-Rejection-Typ 55 dB
