MCP1755T-3302E/DC

MCP1755T-3302E/DC Overview

Product belongs to the - series. This product is categorized as LDO Regulators Type: High-Performance Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004265 oz SMD/SMT Mounting-Style SOT-223-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-223-5 Tolerance of 2 % 3.6 V ~ 16 V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V Maximum Input Voltage: 16 V Output current: 300 mA The product's 3.6 V is 5.1 V. Load regulation is 0.1 %. The 300 mV. The maximum 500 mV is 360 mV. This product's 0.01 %/V is 0.01 %/V. The product's 80 dB is -20 dB. This product has an - of 2.7 V to 5.5 V.

MCP1755T-3302E/DC Image

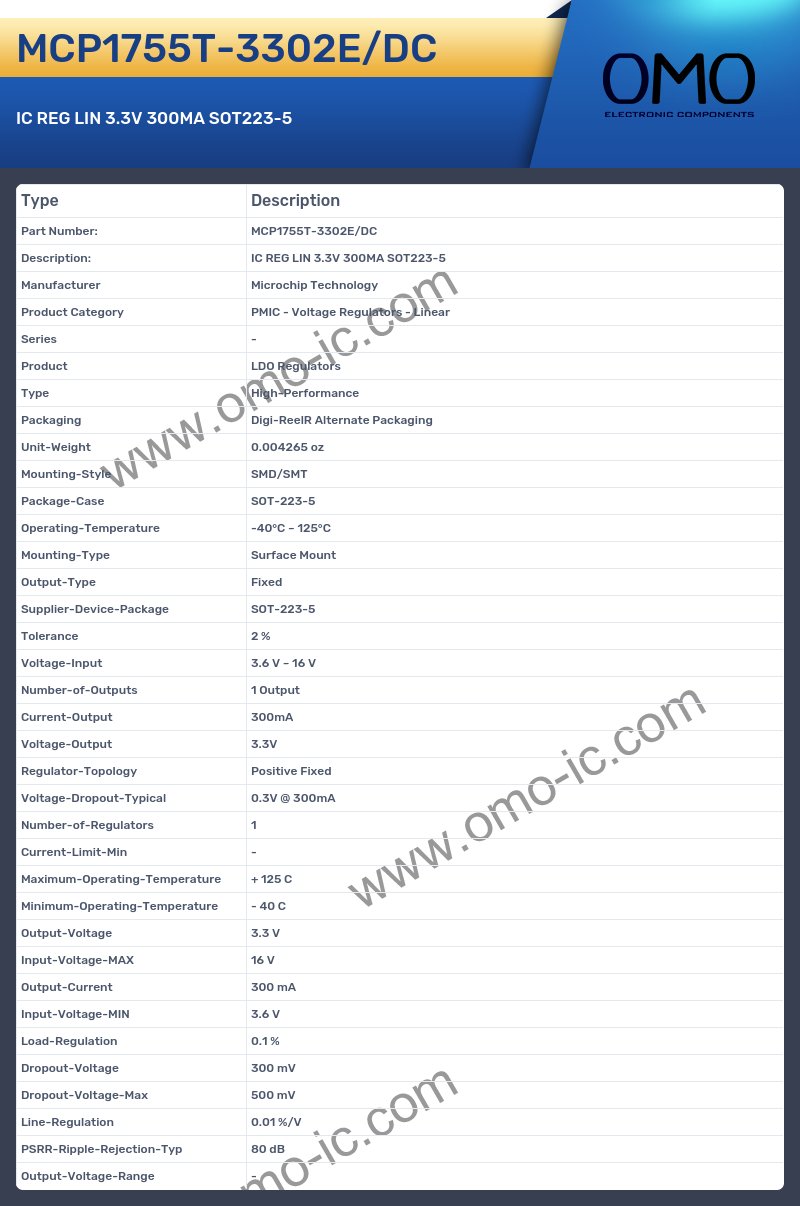

MCP1755T-3302E/DC Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Regulators
• Type High-Performance
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004265 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-223-5
• Tolerance 2 %
• Voltage-Input 3.6 V ~ 16 V
• Number-of-Outputs 1 Output
• Current-Output 300mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.3V @ 300mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Input-Voltage-MAX 16 V
• Output-Current 300 mA
• Input-Voltage-MIN 3.6 V
• Load-Regulation 0.1 %
• Dropout-Voltage 300 mV
• Dropout-Voltage-Max 500 mV
• Line-Regulation 0.01 %/V
• PSRR-Ripple-Rejection-Typ 80 dB
• Output-Voltage-Range -
