MCP1703T-3302E/MC

MCP1703T-3302E/MC Overview

Product belongs to the - series. This product is categorized as LDO Regulators Type: Low Quiescent Current Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001319 oz SMD/SMT Mounting-Style DFN-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-DFN (2x3) Tolerance of 2 % Up to 16V voltage input Number-of-Outputs: 1 Output Output voltage: 3.3V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.3 V 2 uA is 92 nA. Maximum Input Voltage: 16 V Output current: 250 mA Load regulation is 1 %. The voltage regulation accuracy of this product is 0.4 %. The maximum 1.1 V is 360 mV. This product's 0.1 %/V is 0.01 %/V. The product's 44 dB is -20 dB.

MCP1703T-3302E/MC Image

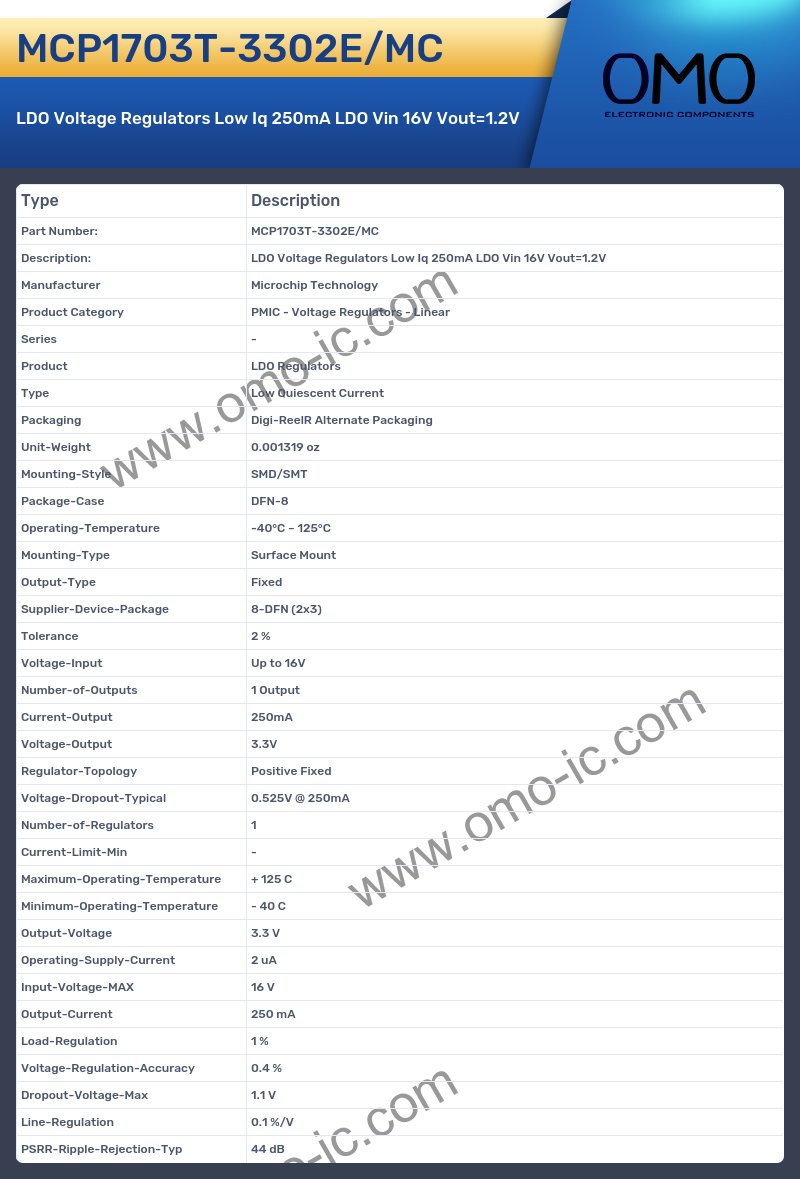

MCP1703T-3302E/MC Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Regulators
• Type Low Quiescent Current
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001319 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-DFN (2x3)
• Tolerance 2 %
• Voltage-Input Up to 16V
• Number-of-Outputs 1 Output
• Current-Output 250mA
• Voltage-Output 3.3V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.525V @ 250mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.3 V
• Operating-Supply-Current 2 uA
• Input-Voltage-MAX 16 V
• Output-Current 250 mA
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 0.4 %
• Dropout-Voltage-Max 1.1 V
• Line-Regulation 0.1 %/V
• PSRR-Ripple-Rejection-Typ 44 dB
