MCP1703T-2802E/CB

MCP1703T-2802E/CB Overview

Product belongs to the - series. This product is categorized as LDO Voltage Regulator Type: Low Quiescent Current Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23A-3 Up to 16V voltage input Number-of-Outputs: 1 Output Output voltage: 2.8V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.8 V Maximum Input Voltage: 16 V Output current: 250 mA The product's 2.7 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 2 %. Input bias current of 2 uA The 625 mV. The maximum 1.1 V is 360 mV. This product's 0.1 %/V is 0.01 %/V. The product's 44 dB is -20 dB. This product has an - of 2.7 V to 5.5 V.

MCP1703T-2802E/CB Image

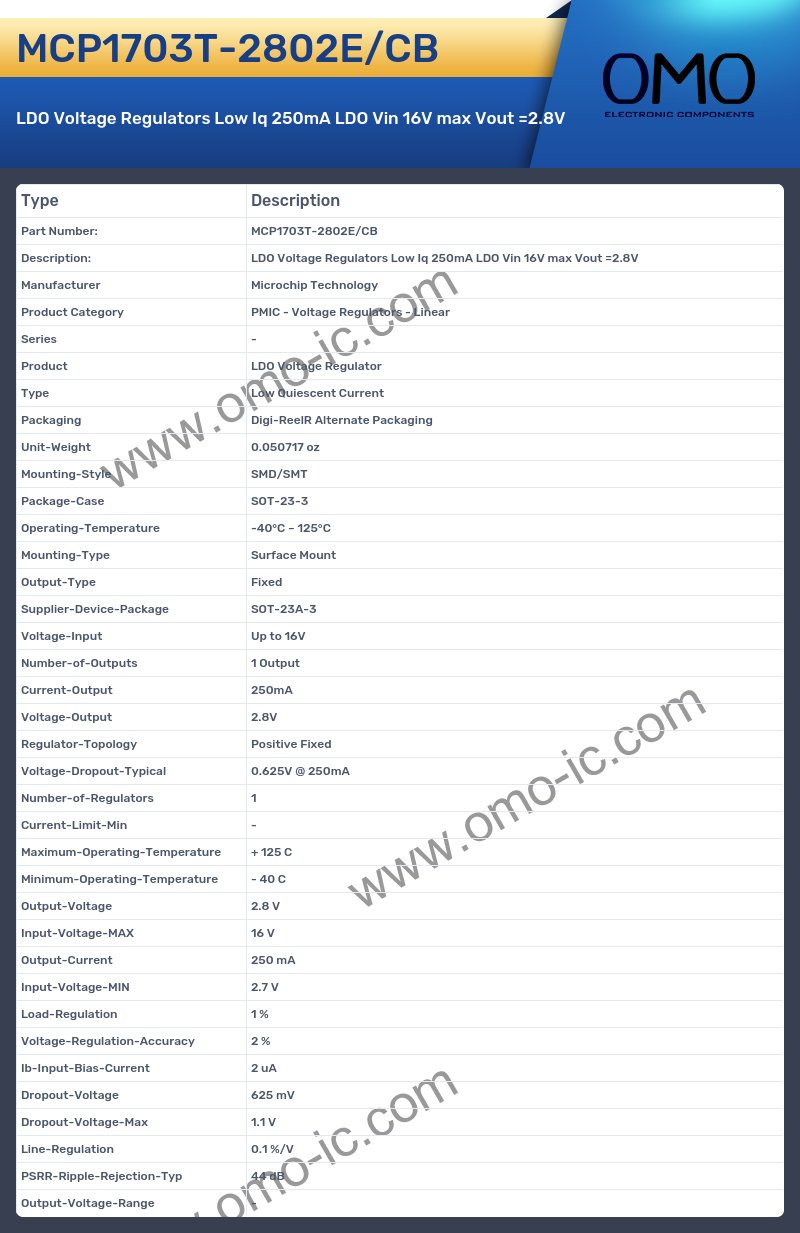

MCP1703T-2802E/CB Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Voltage Regulator
• Type Low Quiescent Current
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23A-3
• Voltage-Input Up to 16V
• Number-of-Outputs 1 Output
• Current-Output 250mA
• Voltage-Output 2.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.625V @ 250mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.8 V
• Input-Voltage-MAX 16 V
• Output-Current 250 mA
• Input-Voltage-MIN 2.7 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 2 uA
• Dropout-Voltage 625 mV
• Dropout-Voltage-Max 1.1 V
• Line-Regulation 0.1 %/V
• PSRR-Ripple-Rejection-Typ 44 dB
• Output-Voltage-Range -
