MCP1702-2502E/TO

MCP1702-2502E/TO Overview

Product belongs to the - series. Bulk is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-92-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-92-3 Up to 13.2V voltage input Number-of-Outputs: 1 Output Output voltage: 2.5V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.5 V Maximum Input Voltage: 13.2 V Output current: 250 mA The product's + 2.7 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 0.4 %. Input bias current of 2 uA This product has a 5 uA of 7 mA, making it ideal for low-power applications. The 0.75 V at 250 mA. The maximum 1.1 V at 250 mA is 360 mV. This product's 0.1 % / V is 0.01 %/V.

MCP1702-2502E/TO Image

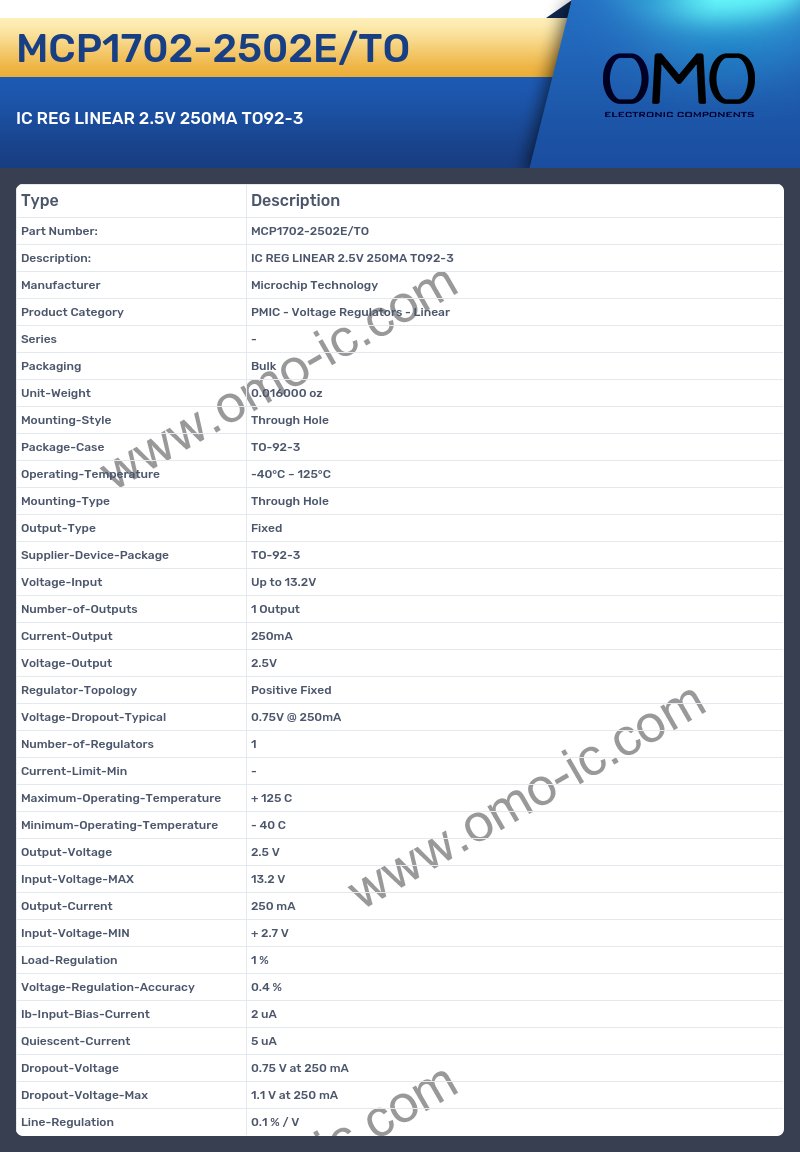

MCP1702-2502E/TO Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Bulk
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-92-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-92-3
• Voltage-Input Up to 13.2V
• Number-of-Outputs 1 Output
• Current-Output 250mA
• Voltage-Output 2.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.75V @ 250mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.5 V
• Input-Voltage-MAX 13.2 V
• Output-Current 250 mA
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 0.4 %
• Ib-Input-Bias-Current 2 uA
• Quiescent-Current 5 uA
• Dropout-Voltage 0.75 V at 250 mA
• Dropout-Voltage-Max 1.1 V at 250 mA
• Line-Regulation 0.1 % / V
