MCP1701A-1802I/TO

MCP1701A-1802I/TO Overview

Product belongs to the - series. Bulk is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-92-3 Operational temperature range: -40°C ~ 85°C Through Hole mounting type Output-Type: Fixed Supplier device package: TO-92-3 Up to 10V voltage input Number-of-Outputs: 1 Output Output voltage: 1.8V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 300 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.8 V Maximum Input Voltage: 10 V Output current: 110 mA Load regulation is 1.6 %. The voltage regulation accuracy of this product is 2 %. Input bias current of 2 uA This product has a 4.5 uA of 7 mA, making it ideal for low-power applications. The 0.18 V at 20 mA. The maximum 300 mV at 20 mA is 360 mV. This product's 0.3 % / V is 0.01 %/V.

MCP1701A-1802I/TO Image

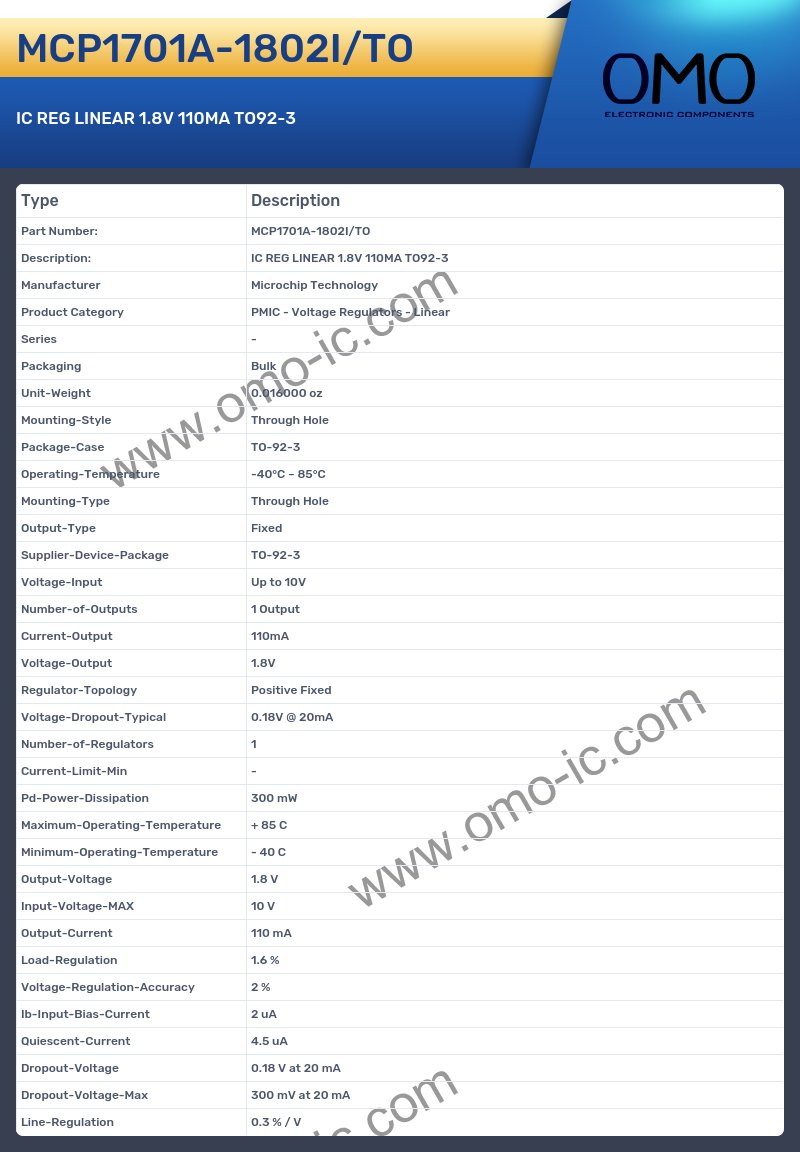

MCP1701A-1802I/TO Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Packaging Bulk
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-92-3
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package TO-92-3
• Voltage-Input Up to 10V
• Number-of-Outputs 1 Output
• Current-Output 110mA
• Voltage-Output 1.8V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.18V @ 20mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 300 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V
• Input-Voltage-MAX 10 V
• Output-Current 110 mA
• Load-Regulation 1.6 %
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 2 uA
• Quiescent-Current 4.5 uA
• Dropout-Voltage 0.18 V at 20 mA
• Dropout-Voltage-Max 300 mV at 20 mA
• Line-Regulation 0.3 % / V
