MCP1700T-2202E/TT

MCP1700T-2202E/TT Overview

Product belongs to the - series. This product is categorized as LDO Regulators Type: Low Quiescent Current Tape & Reel (TR) is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-3 Tolerance of 2 % Up to 6V voltage input Number-of-Outputs: 1 Output Output voltage: 2.2V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 2.2 V 1.6 uA is 92 nA. Maximum Input Voltage: 6 V Output current: 200 mA The product's 2.3 V is 5.1 V. Load regulation is 1 %. The voltage regulation accuracy of this product is 0.4 %. The maximum 350 mV is 360 mV. This product's 0.75 %/V is 0.01 %/V. The product's 44 dB is -20 dB.

MCP1700T-2202E/TT Image

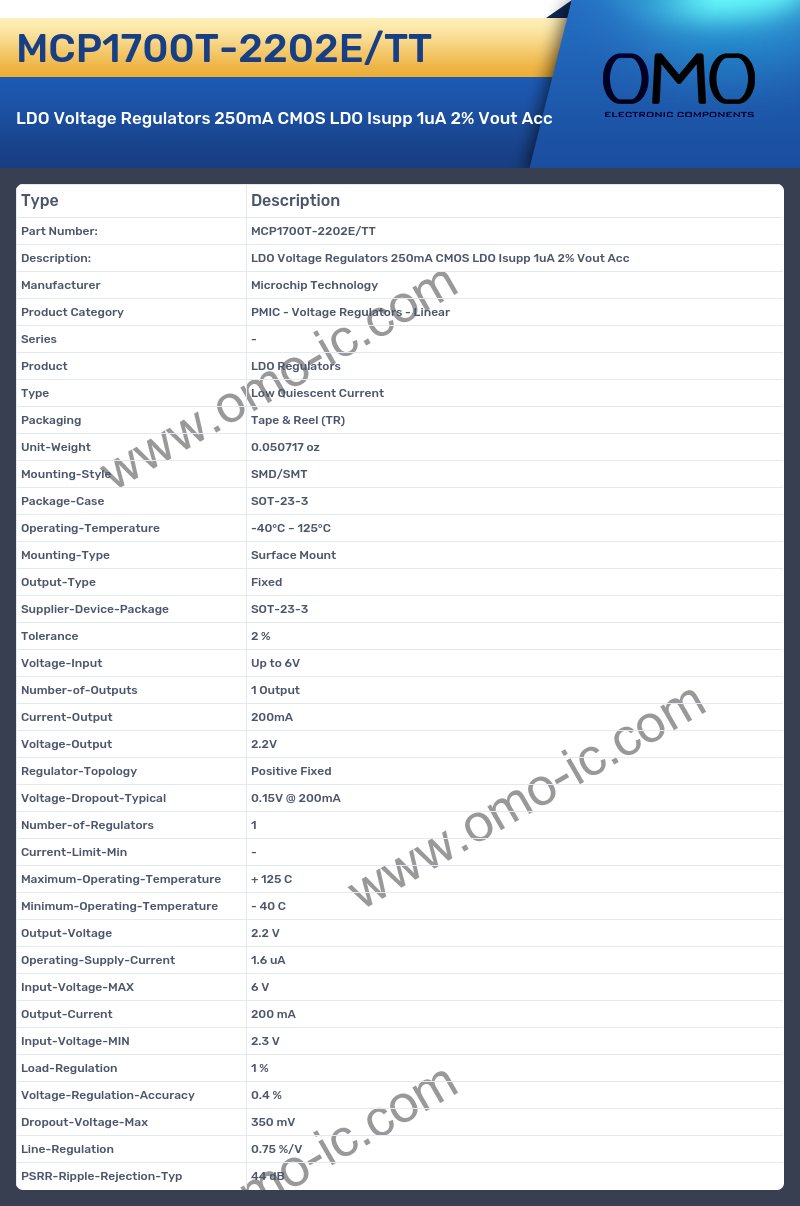

MCP1700T-2202E/TT Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Regulators
• Type Low Quiescent Current
• Packaging Tape & Reel (TR)
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-3
• Tolerance 2 %
• Voltage-Input Up to 6V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output 2.2V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.15V @ 200mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.2 V
• Operating-Supply-Current 1.6 uA
• Input-Voltage-MAX 6 V
• Output-Current 200 mA
• Input-Voltage-MIN 2.3 V
• Load-Regulation 1 %
• Voltage-Regulation-Accuracy 0.4 %
• Dropout-Voltage-Max 350 mV
• Line-Regulation 0.75 %/V
• PSRR-Ripple-Rejection-Typ 44 dB
